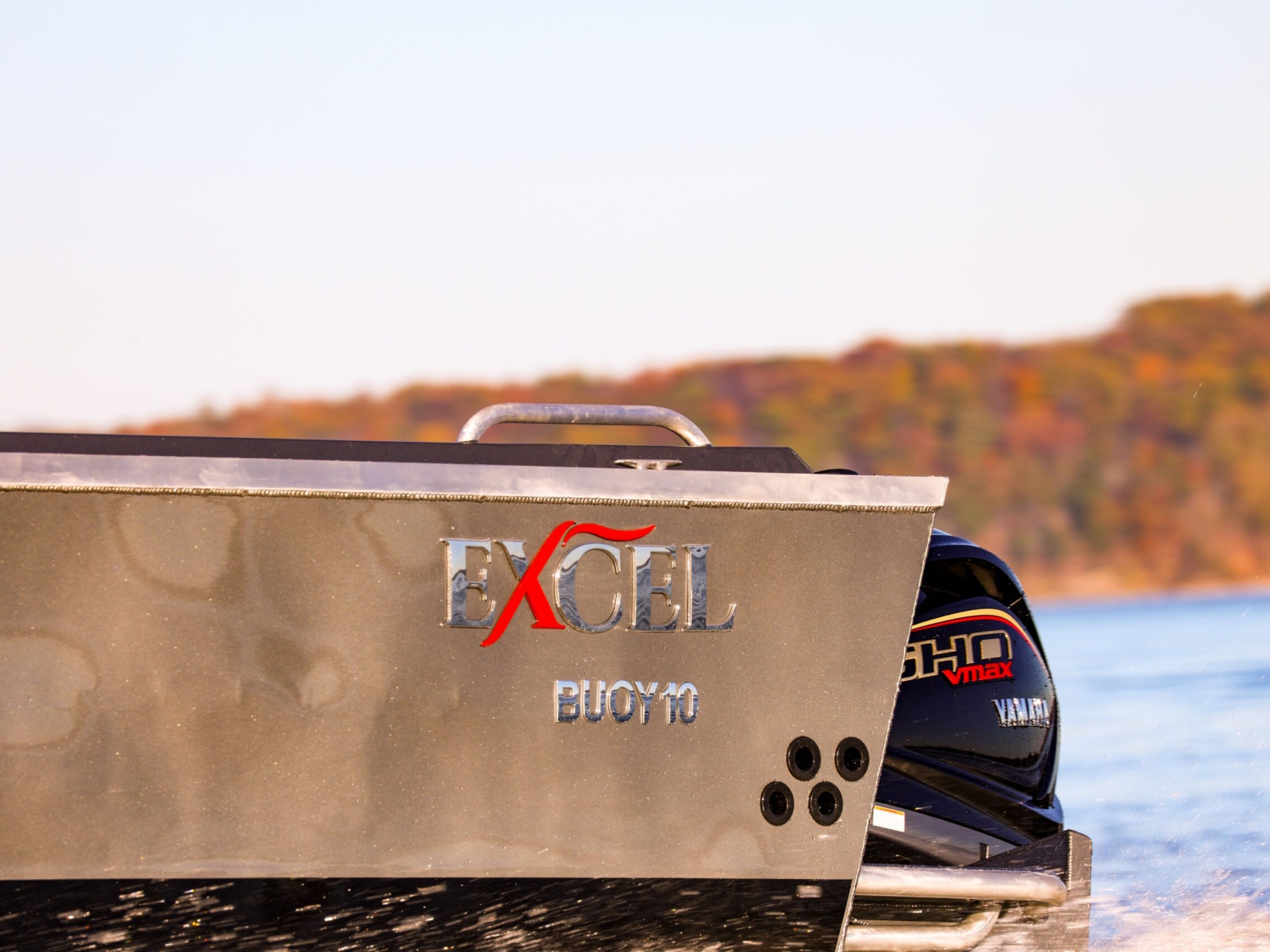

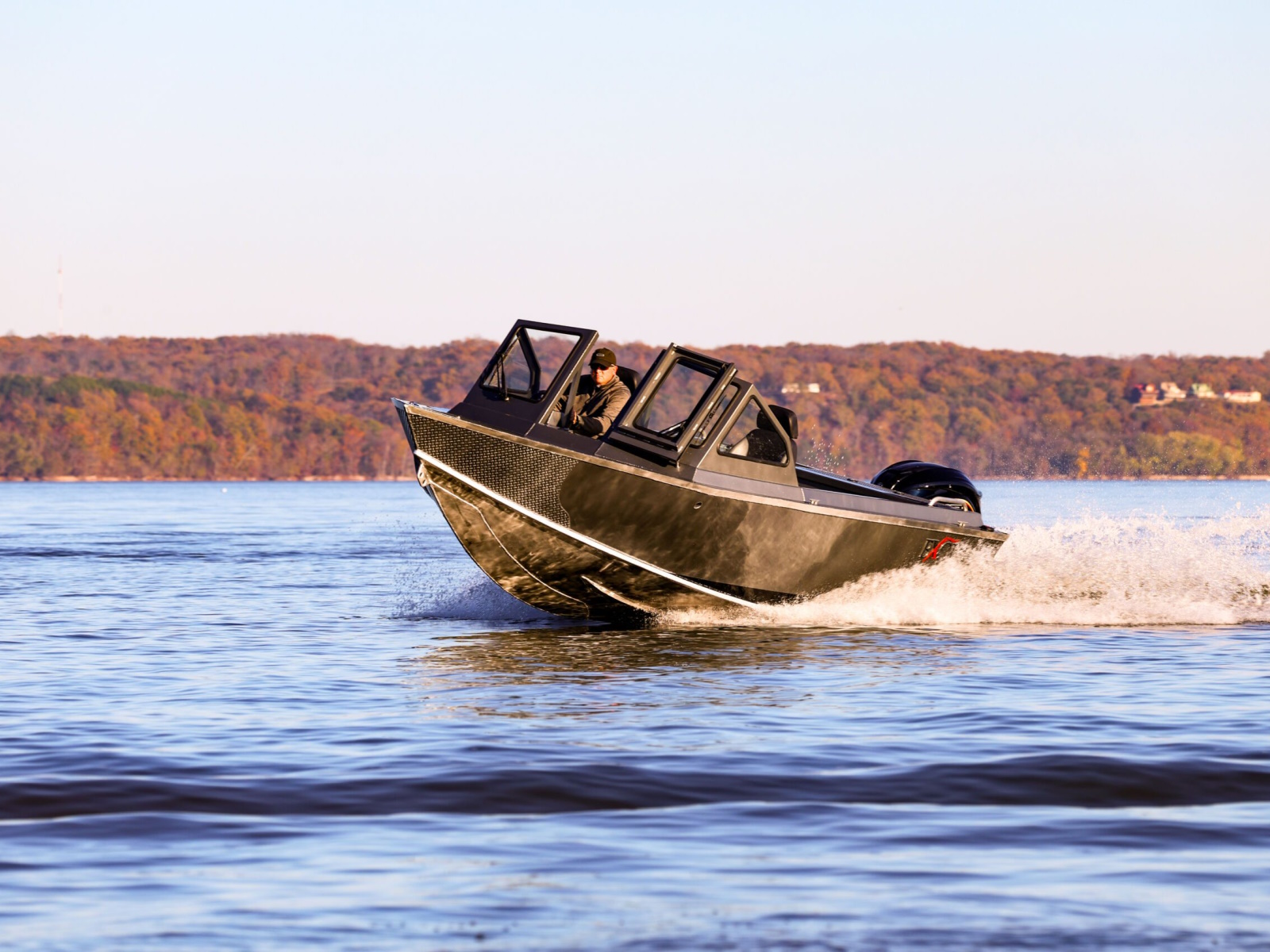

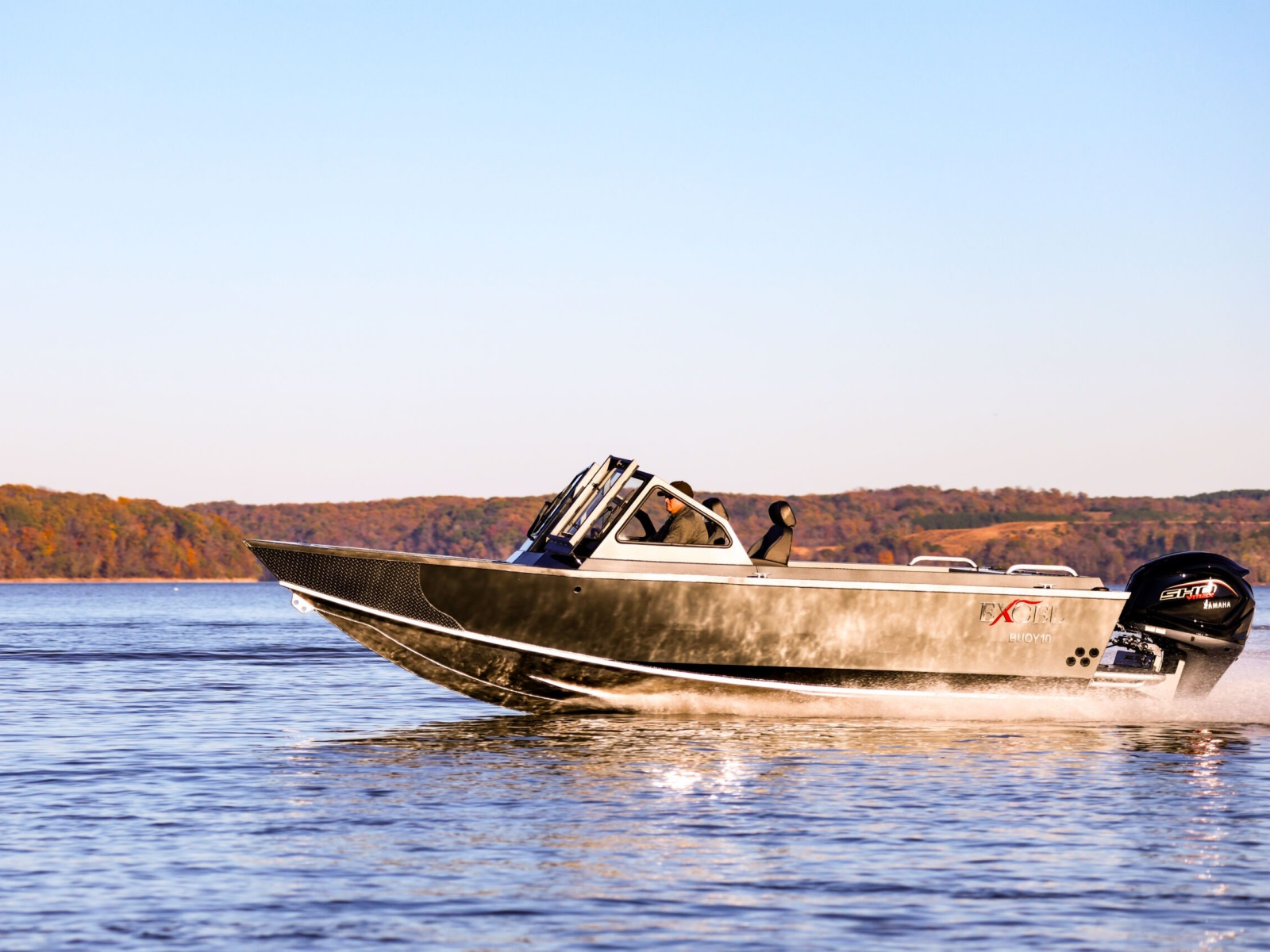

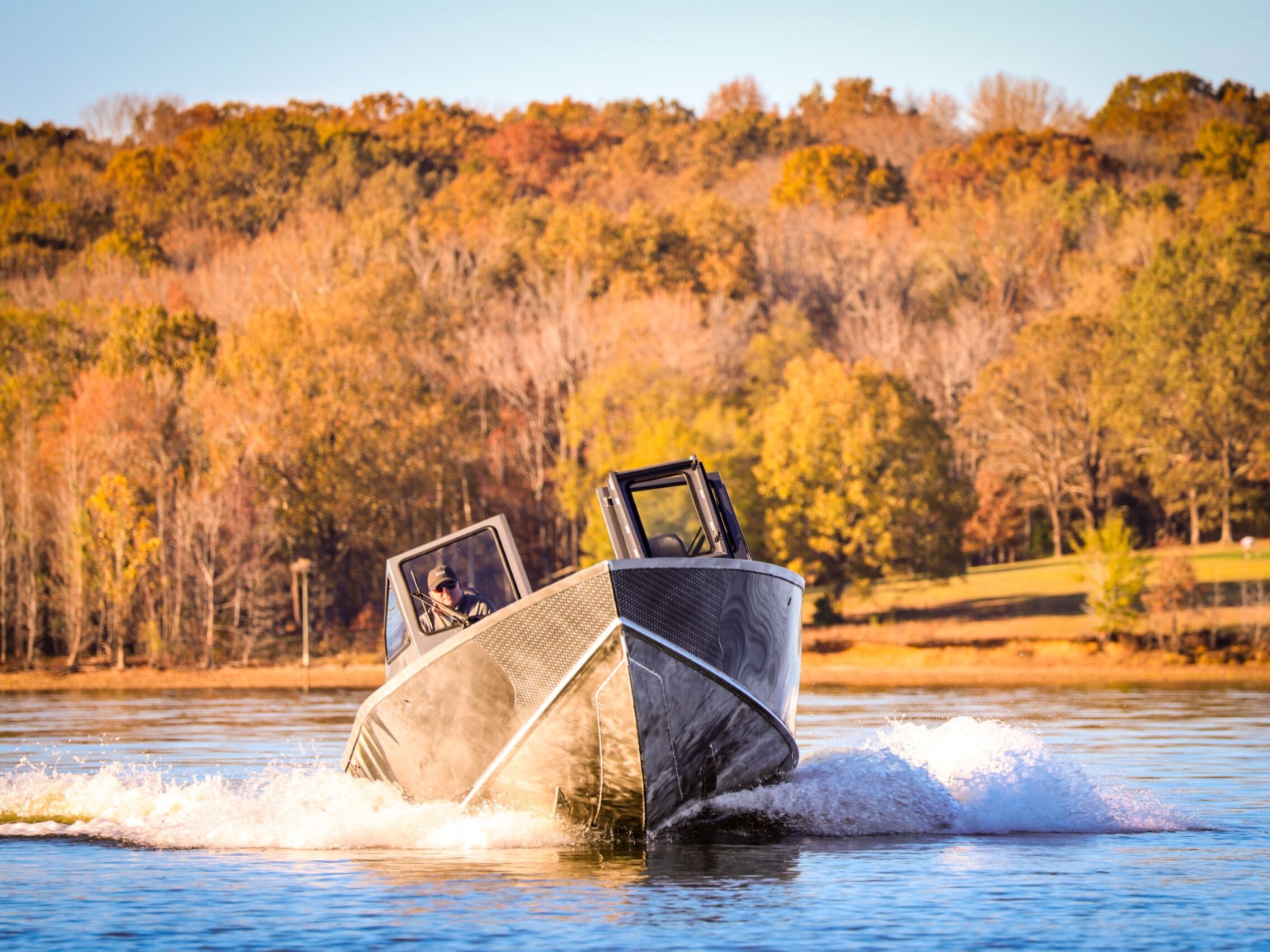

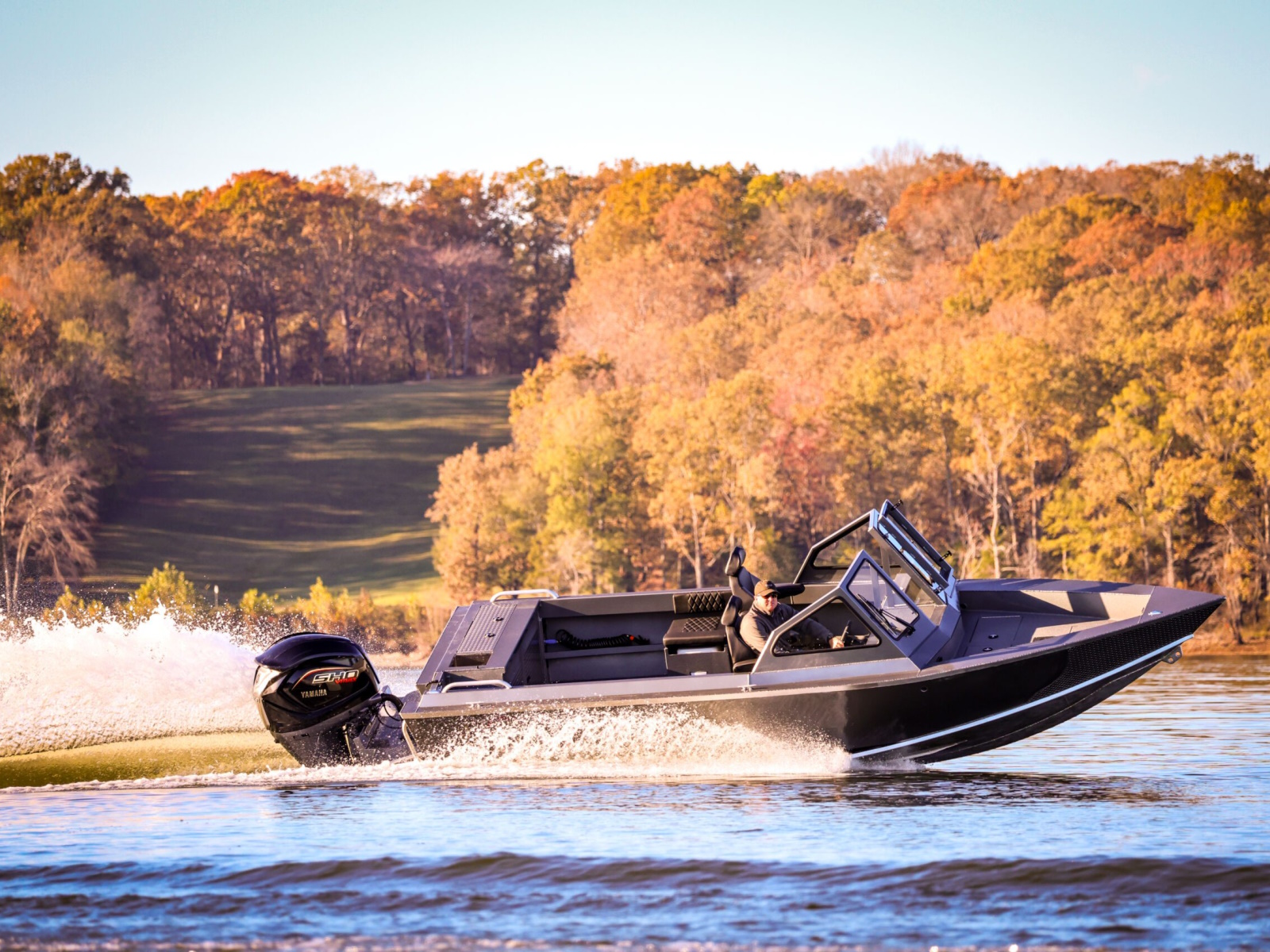

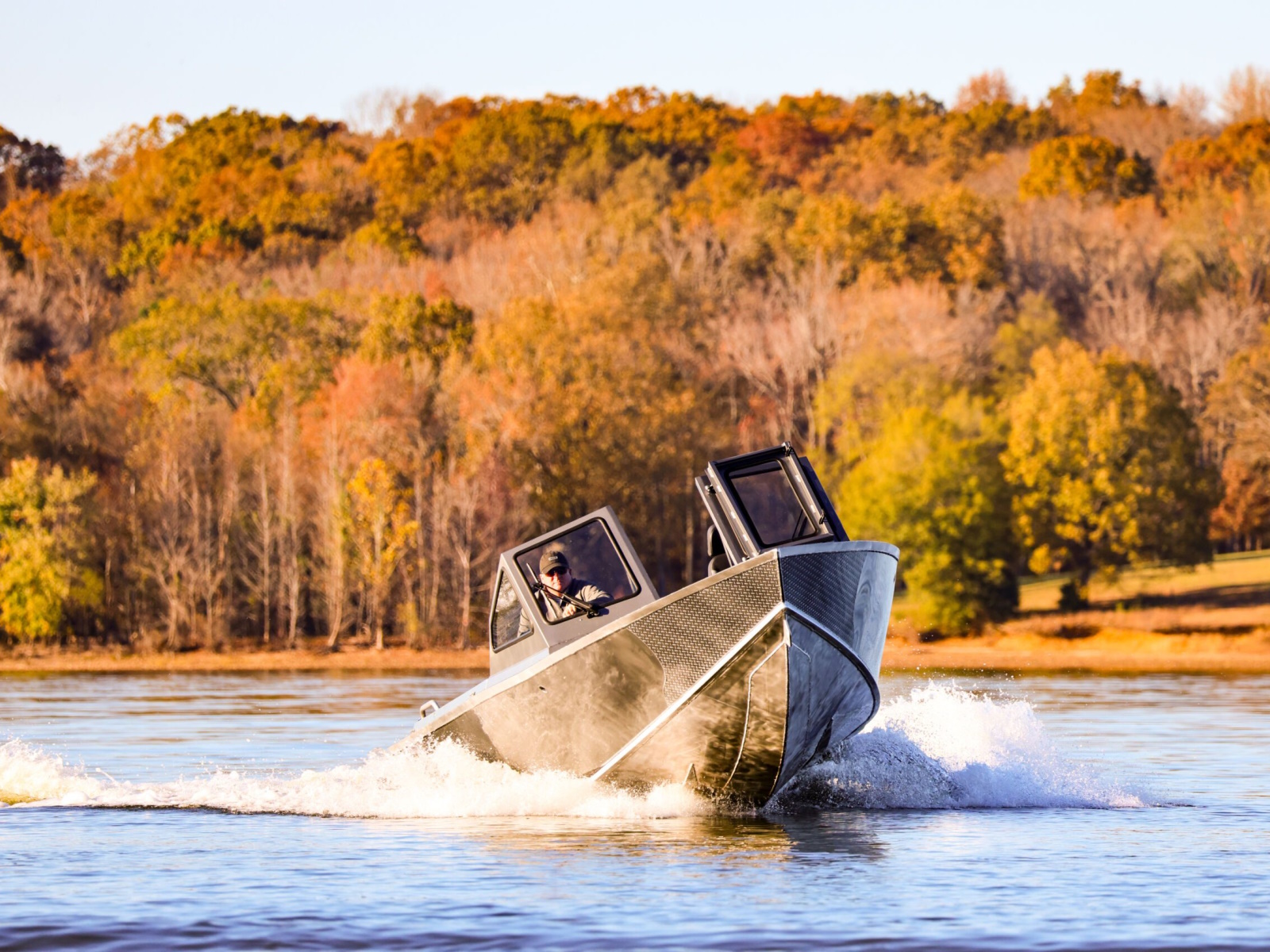

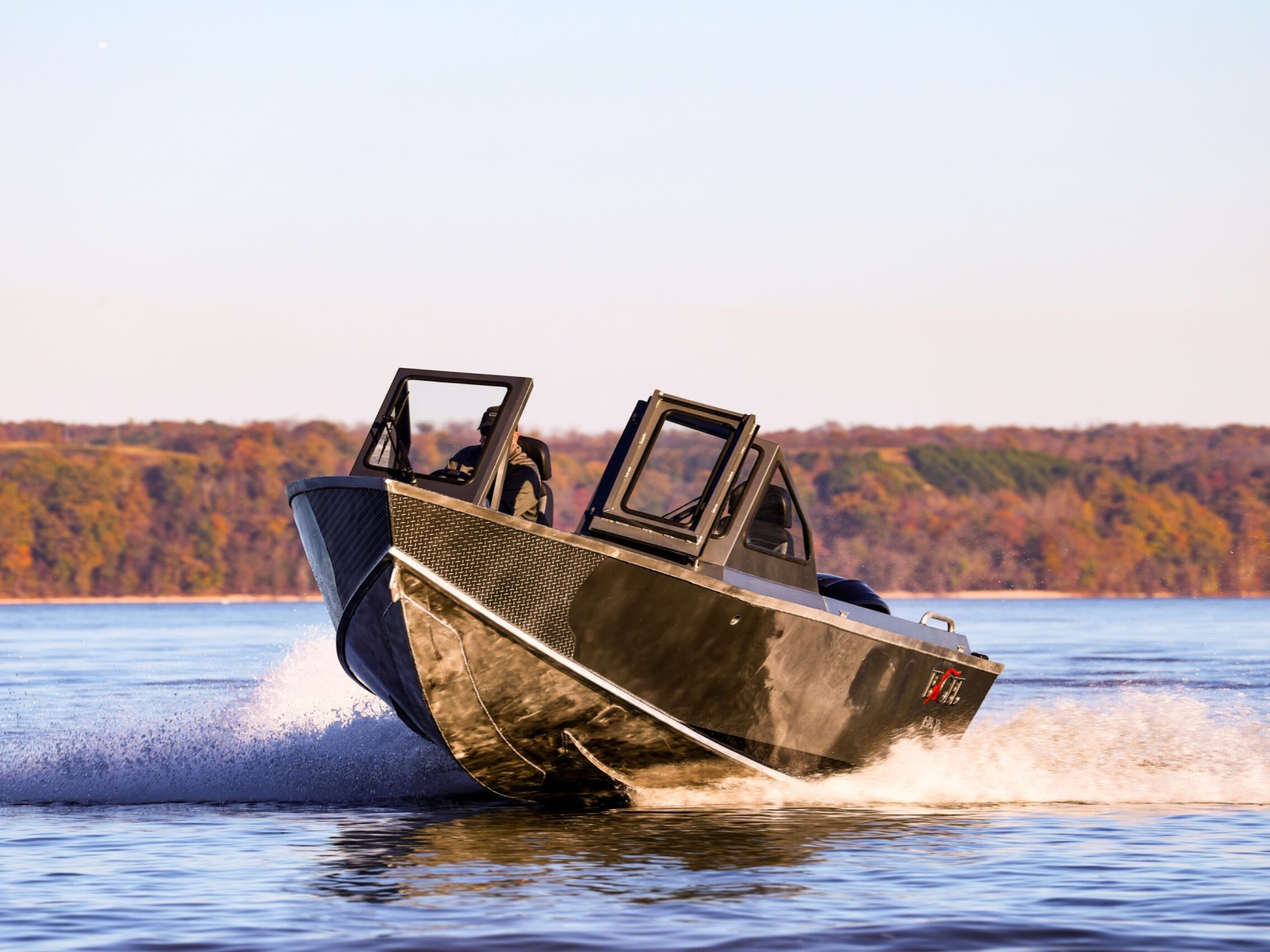

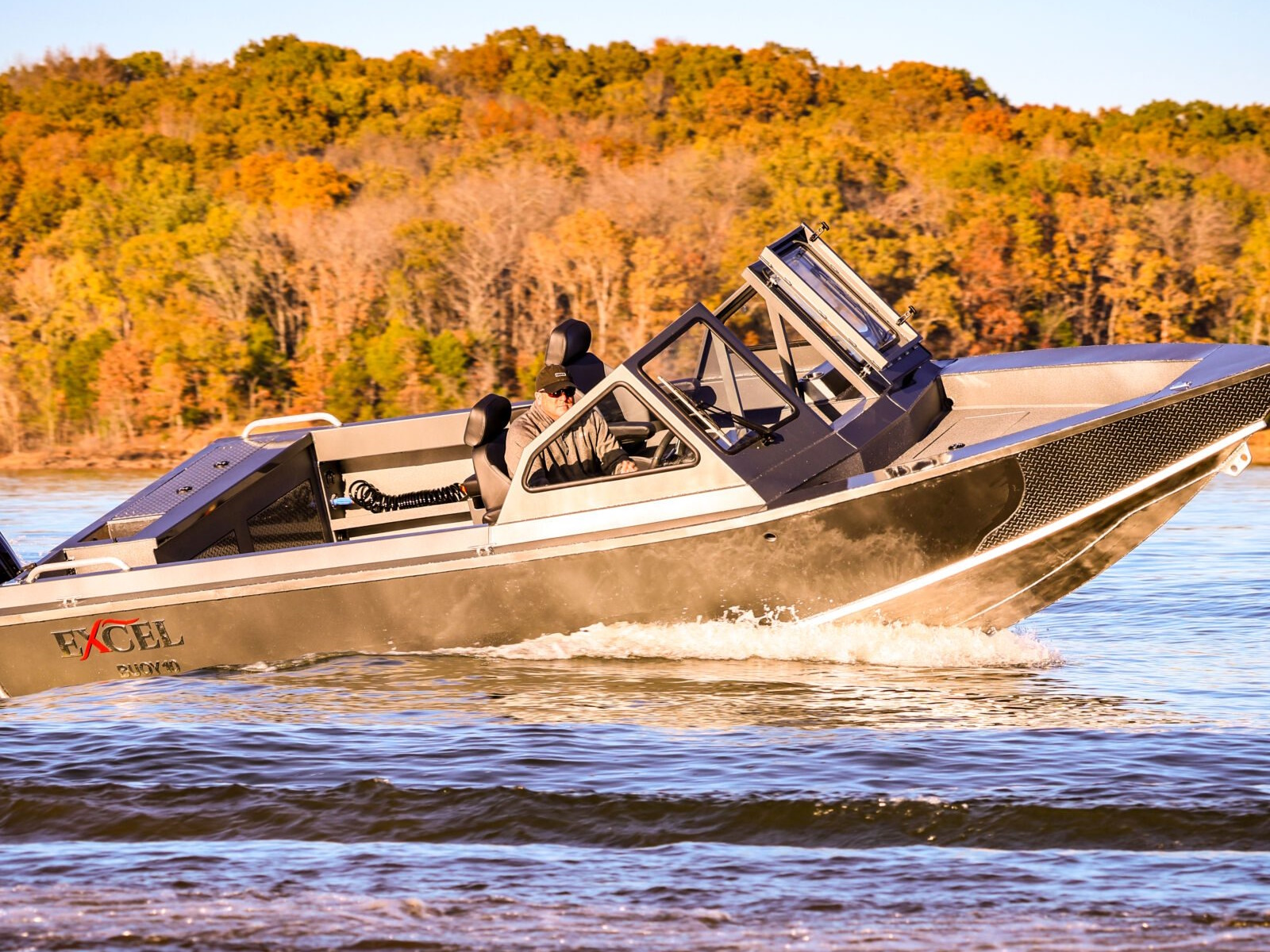

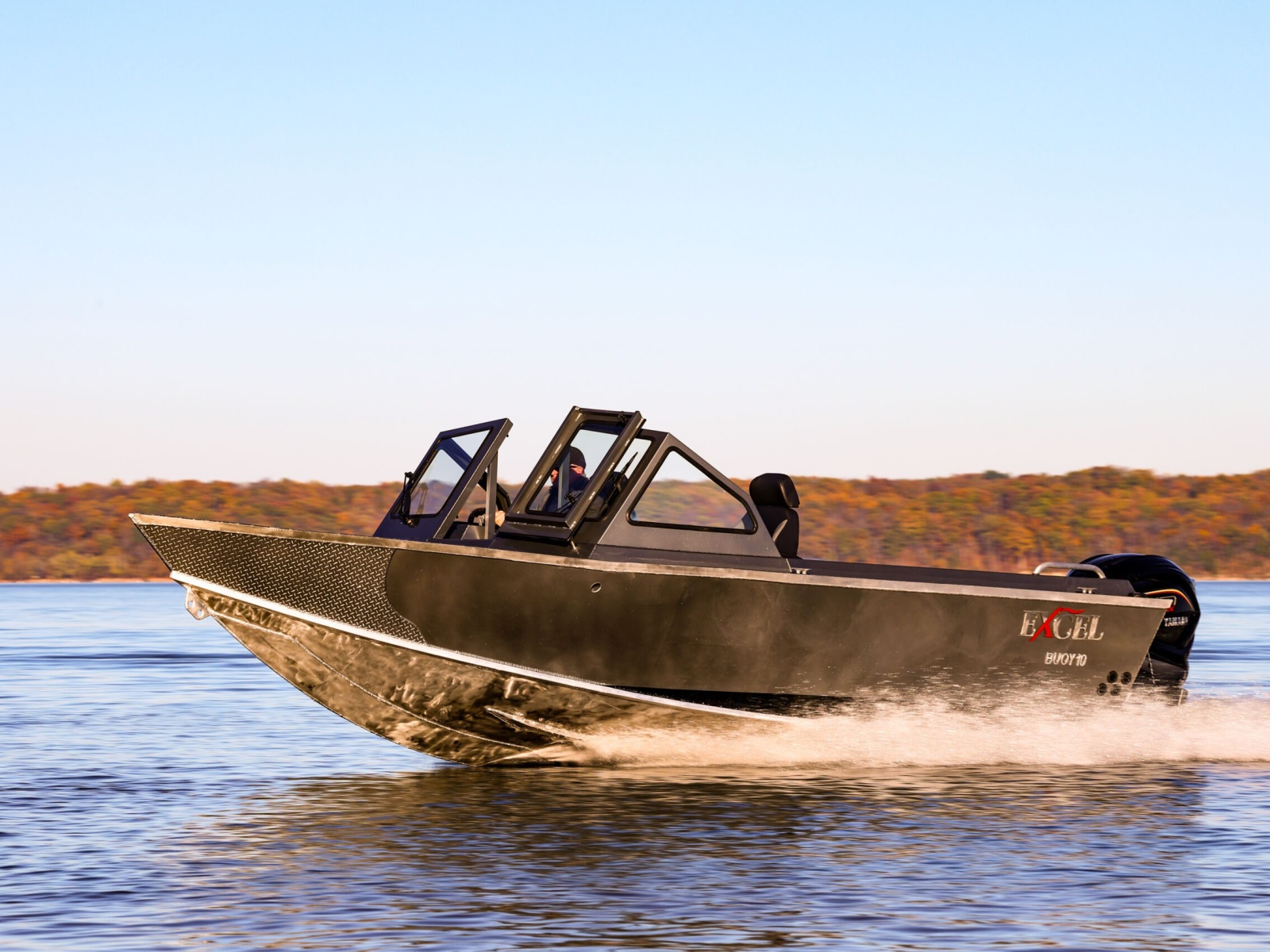

2026  Excel Boats Buoy 10

The TOUGHEST Big-water Boat

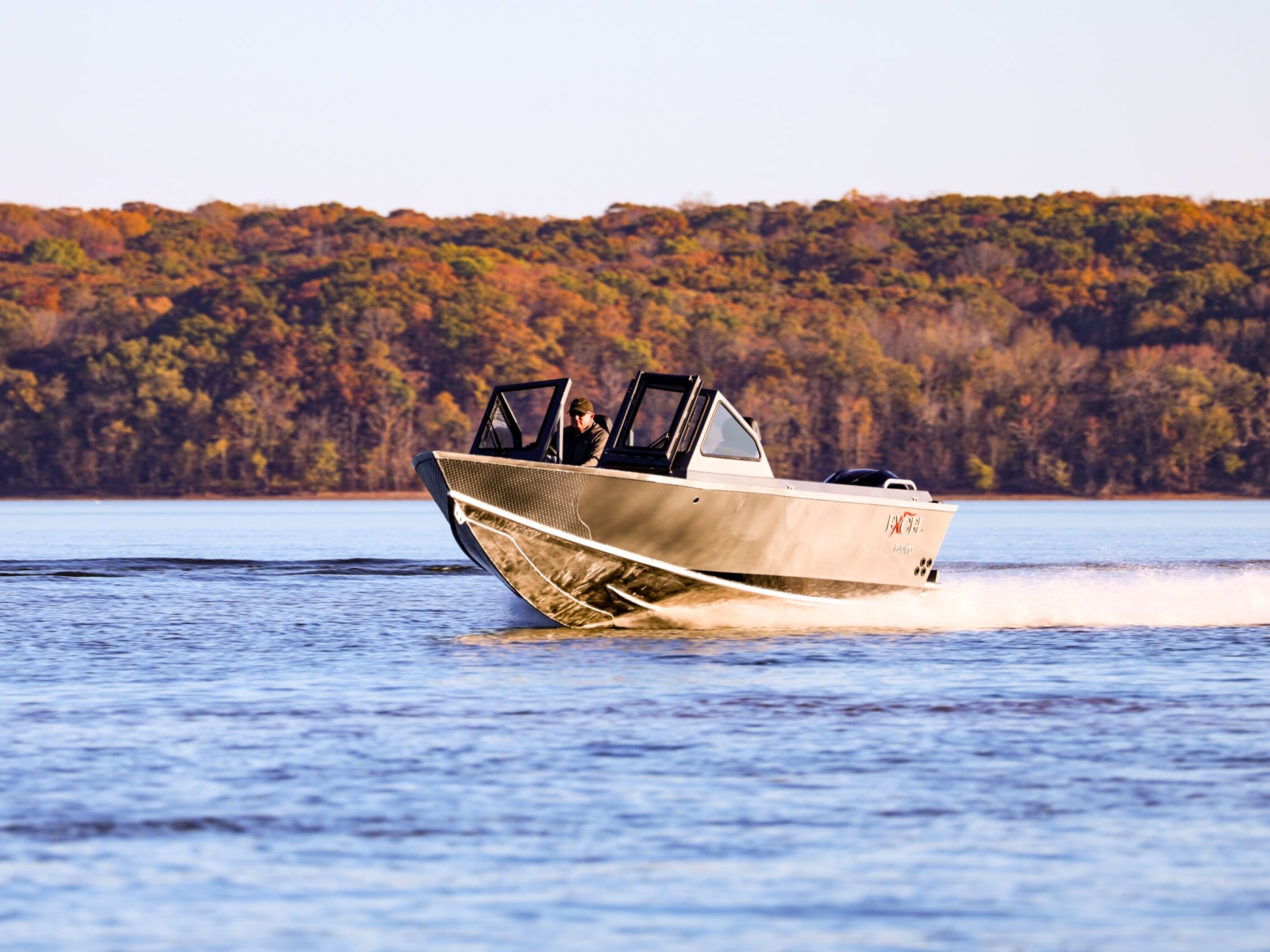

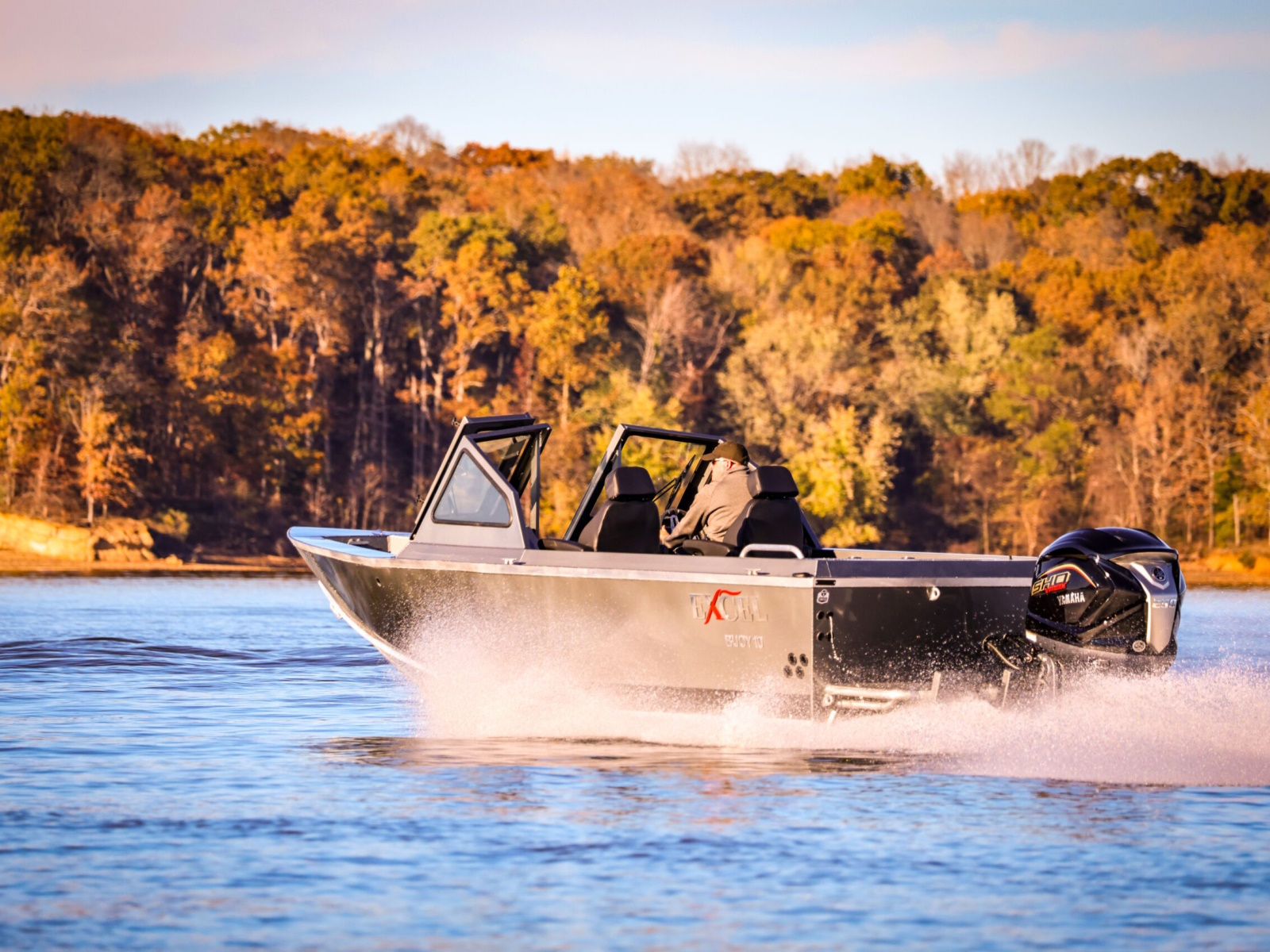

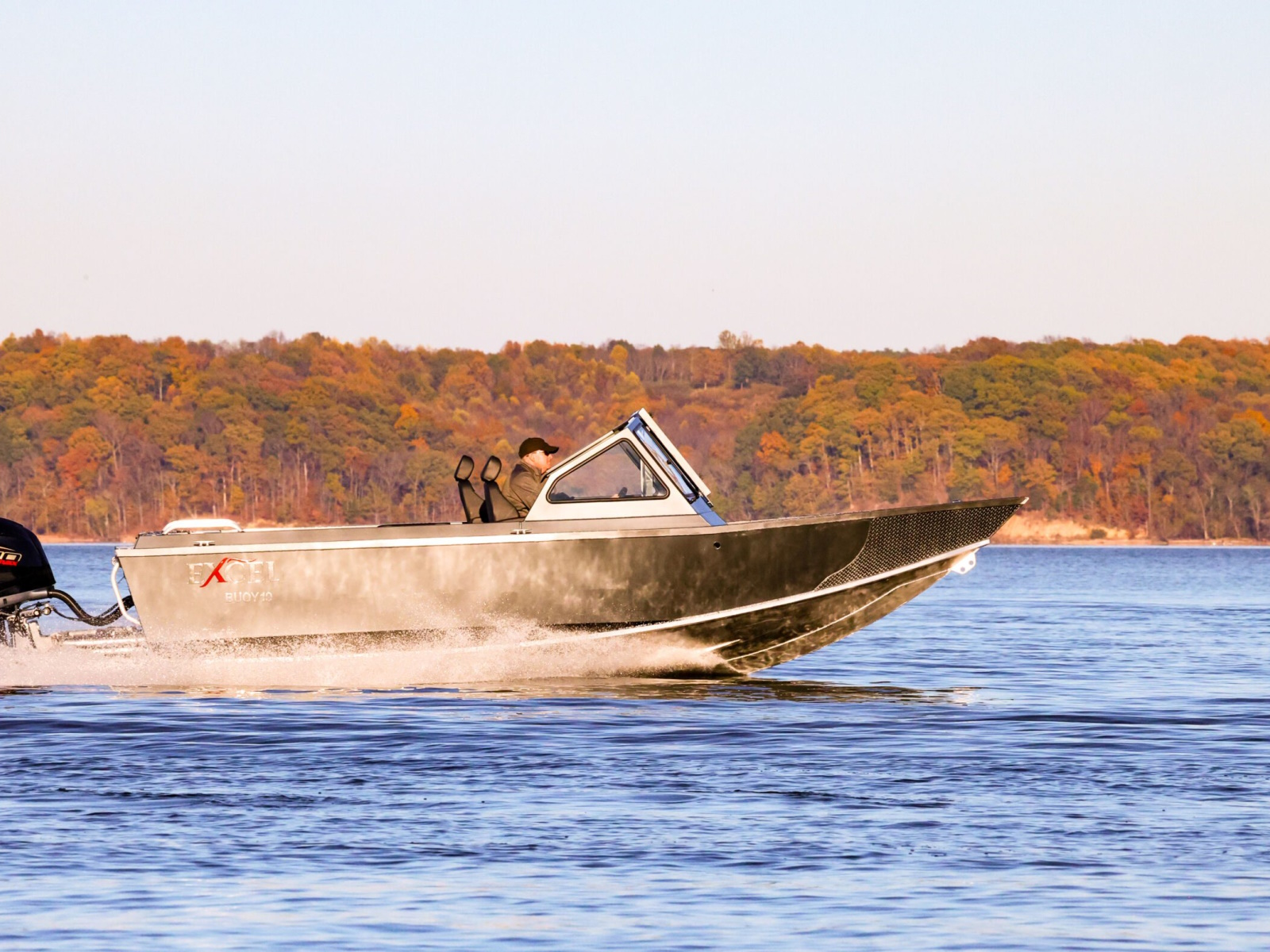

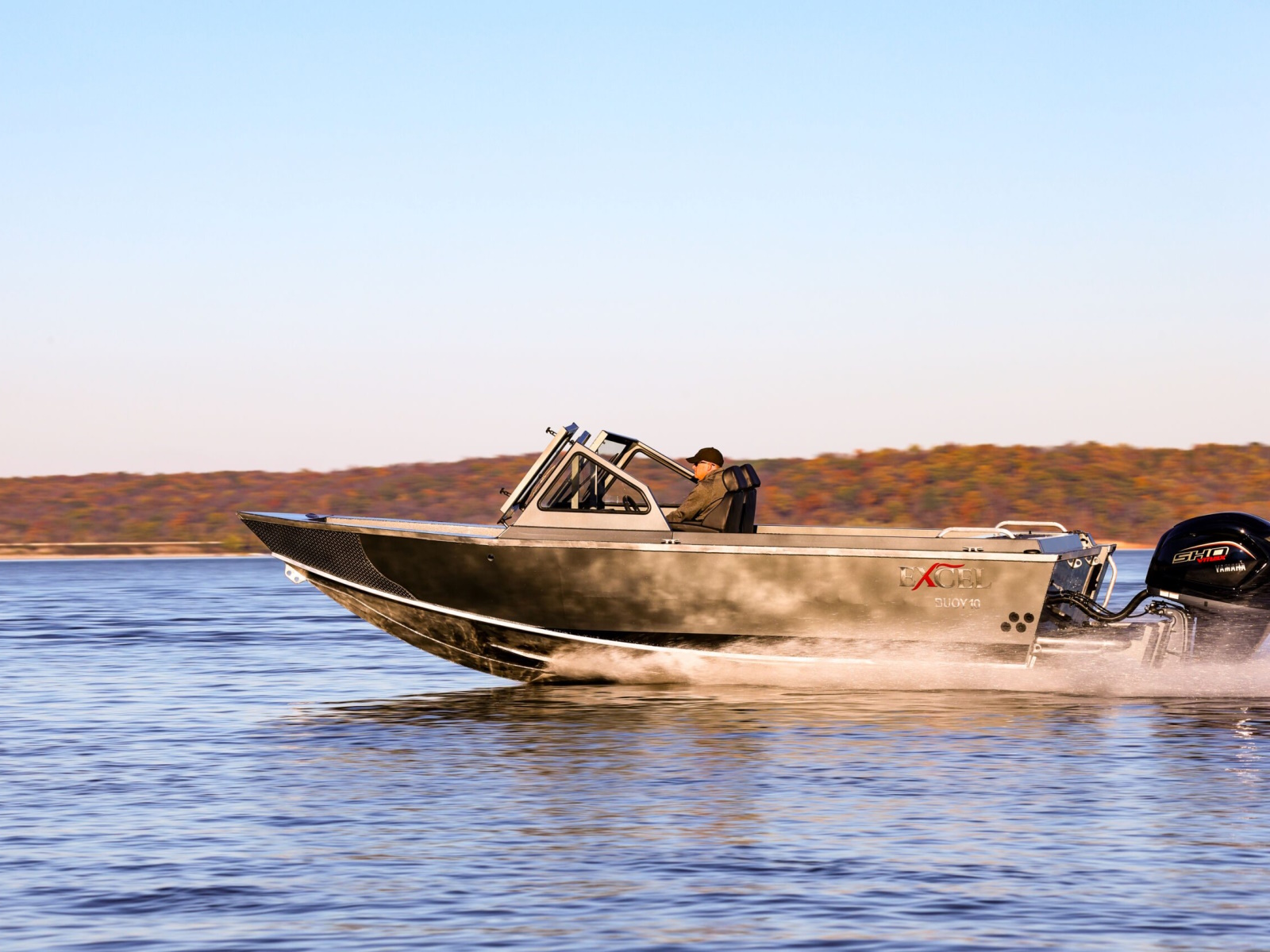

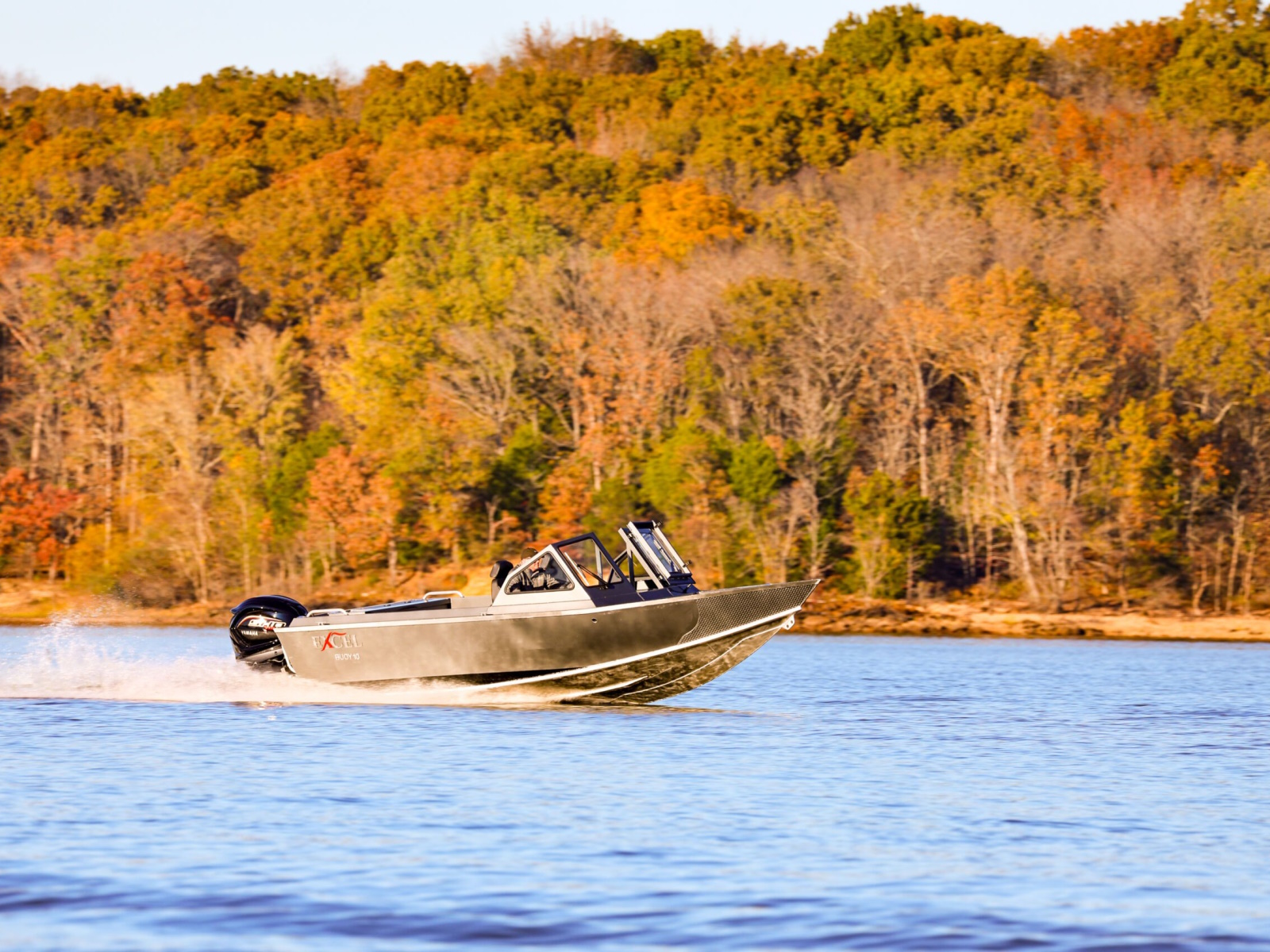

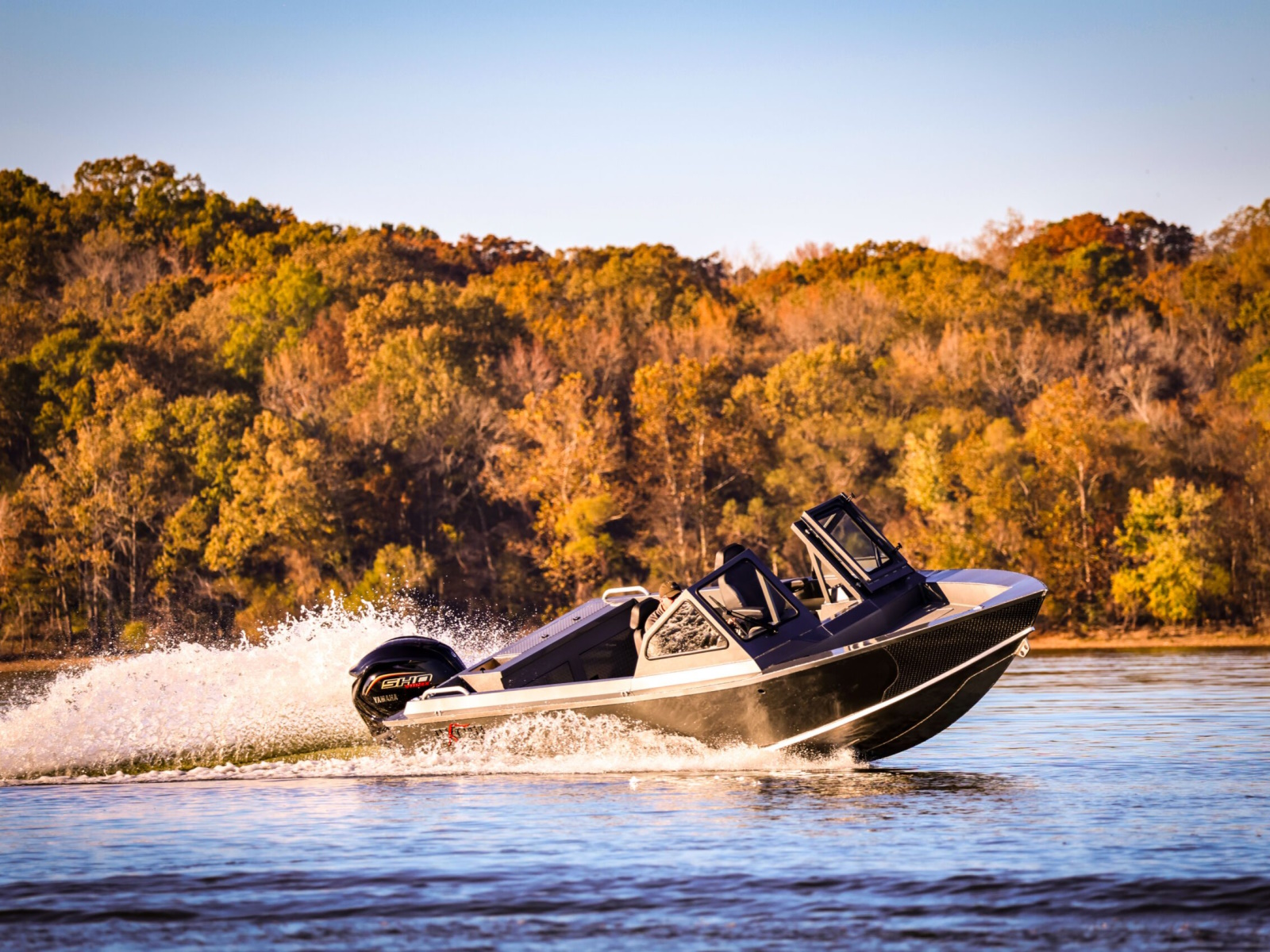

The 21’ Buoy 10 is built on our most advanced big water platform for the ultimate experience for recreational as well as competitive fishermen.

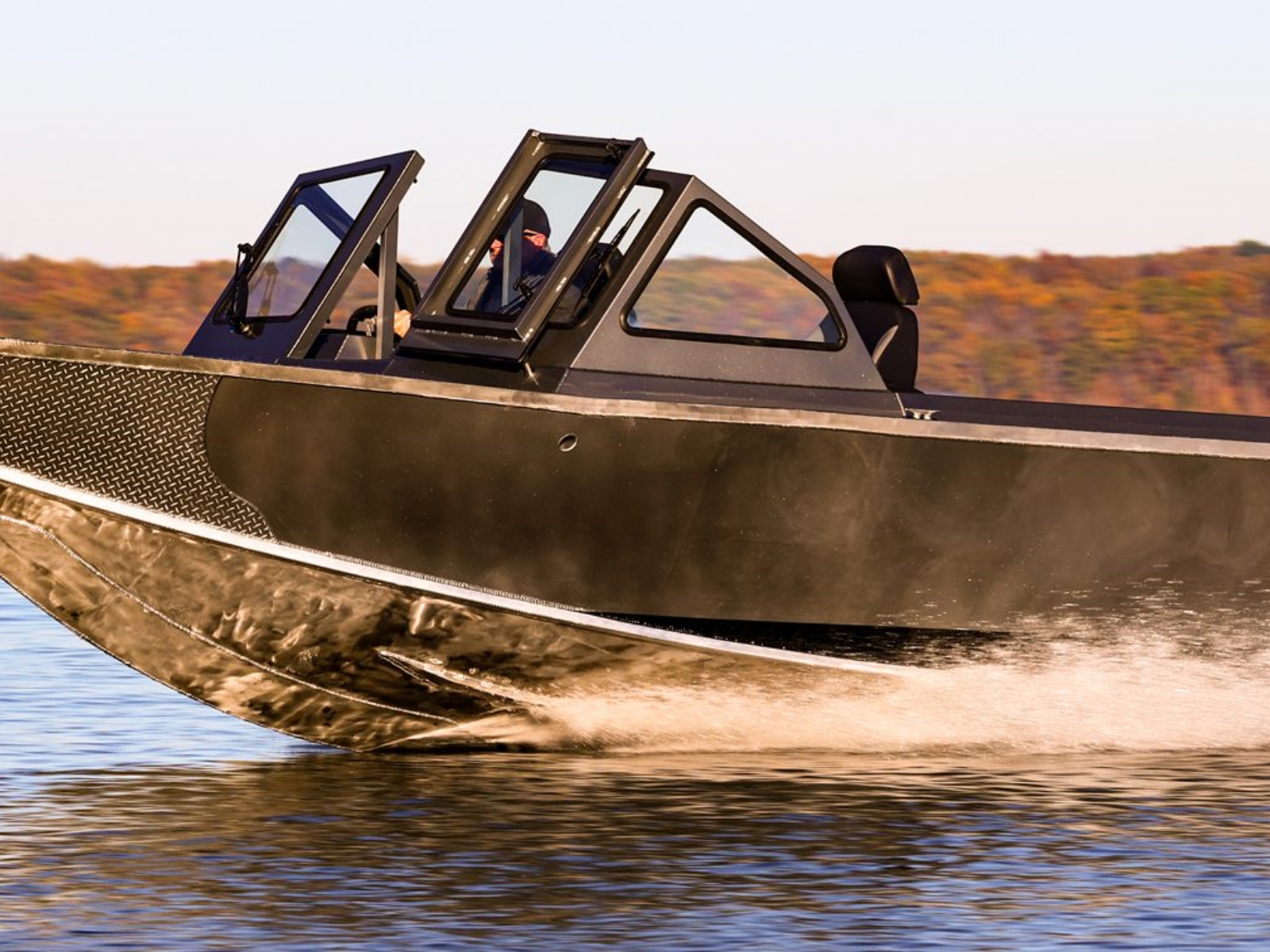

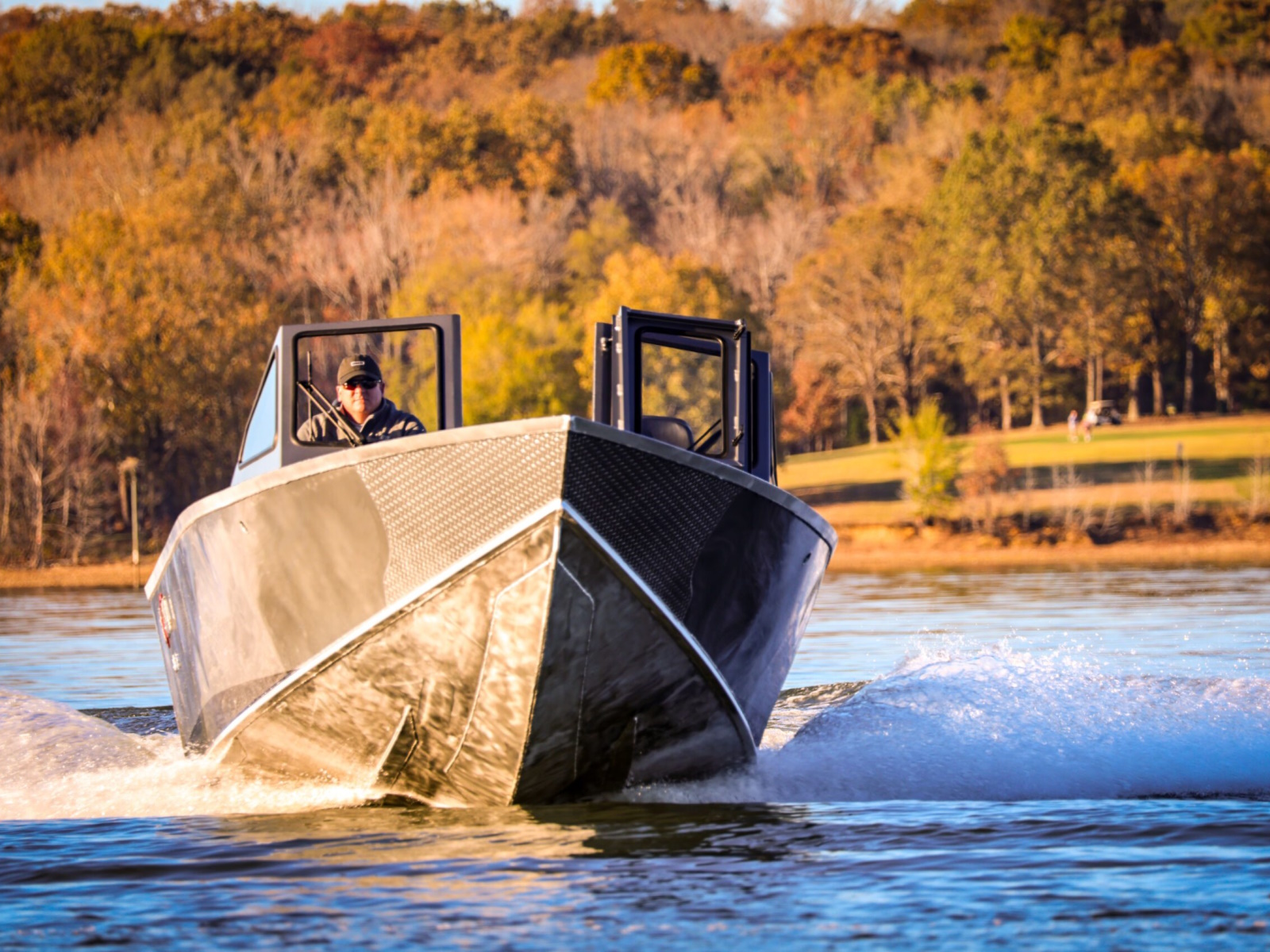

An aggressive hull with 18-degree deadrise allows you to cut through big water at speeds up to 55+mph, while maintaining the comfort expected from a world class fishing boat. Thick 0.250 gauge bottoms, 0.190-gauge transom, and 0.160 gauge sides & floors make the Buoy 10 one of the toughest rides on the water. Driver and passenger suspension seats, 70 gallon fuel tank, self-bailing front deck and wash down station are just a few of the standard features of the Buoy 10. Rated for a 300HP motor.

Features may include:

Performance:

• Centerline length: 21’
• Overall length: 23’
• Overall length with trailer & motor: 28.5’
• Deadrise at transom: 18 Deg

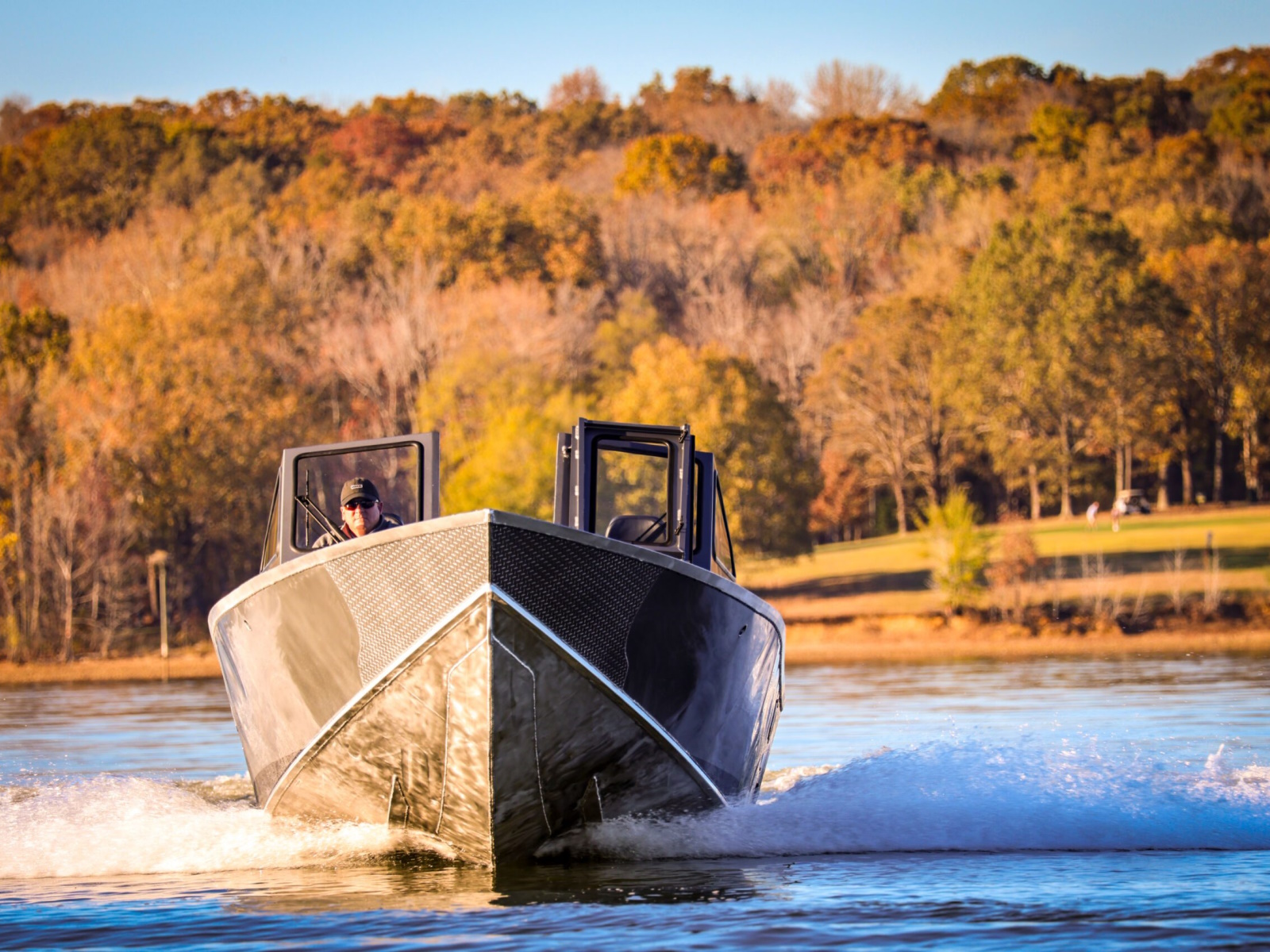

• Deadrise at bow entry: 42 Deg
• Fuel Capacity: 70 Gal
• Hull sides, gunwales, floors: 0.160 5052-H32

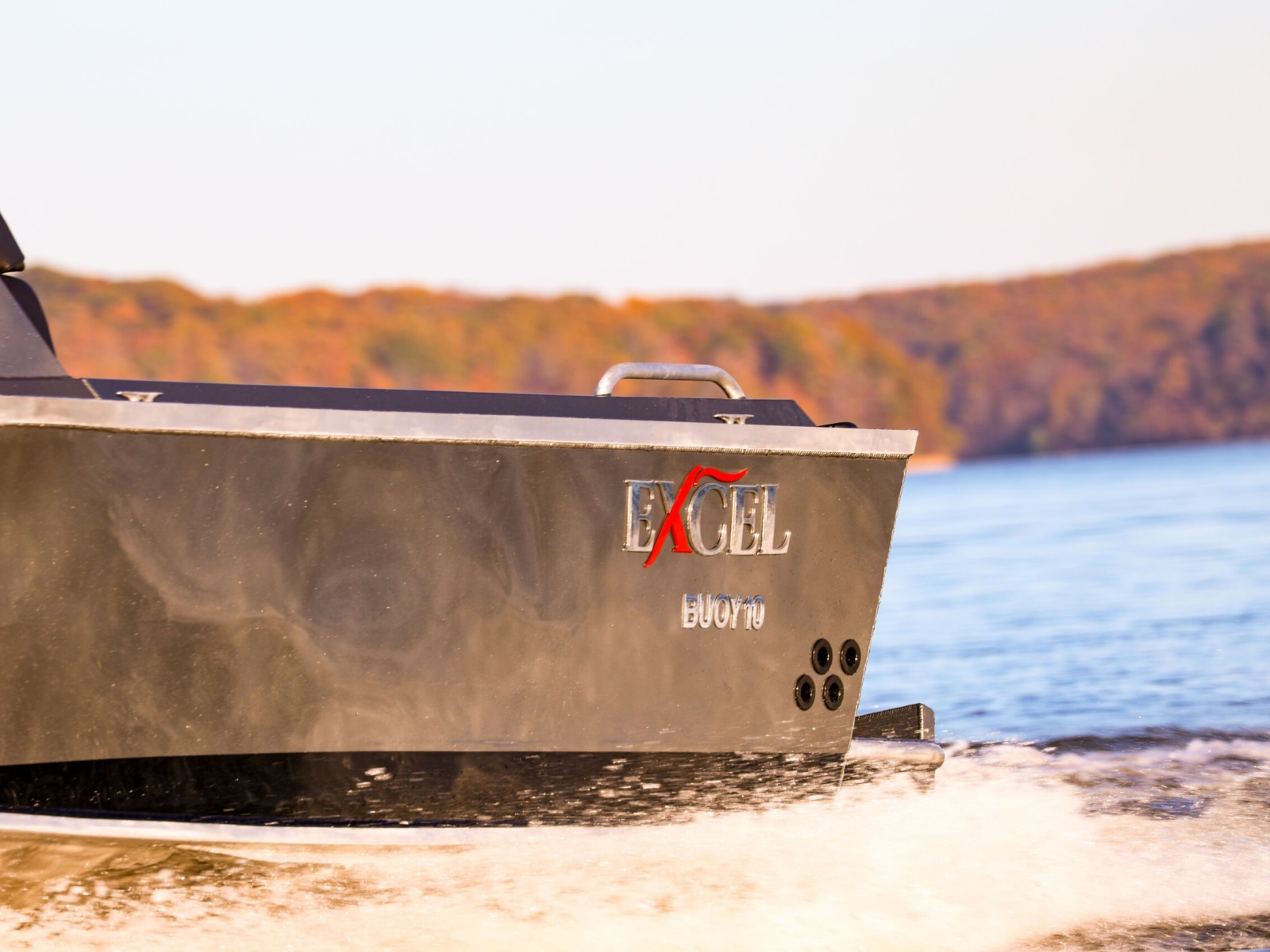

• Hull bottom, transom, and offshore bracket: 0.190 5086-H116

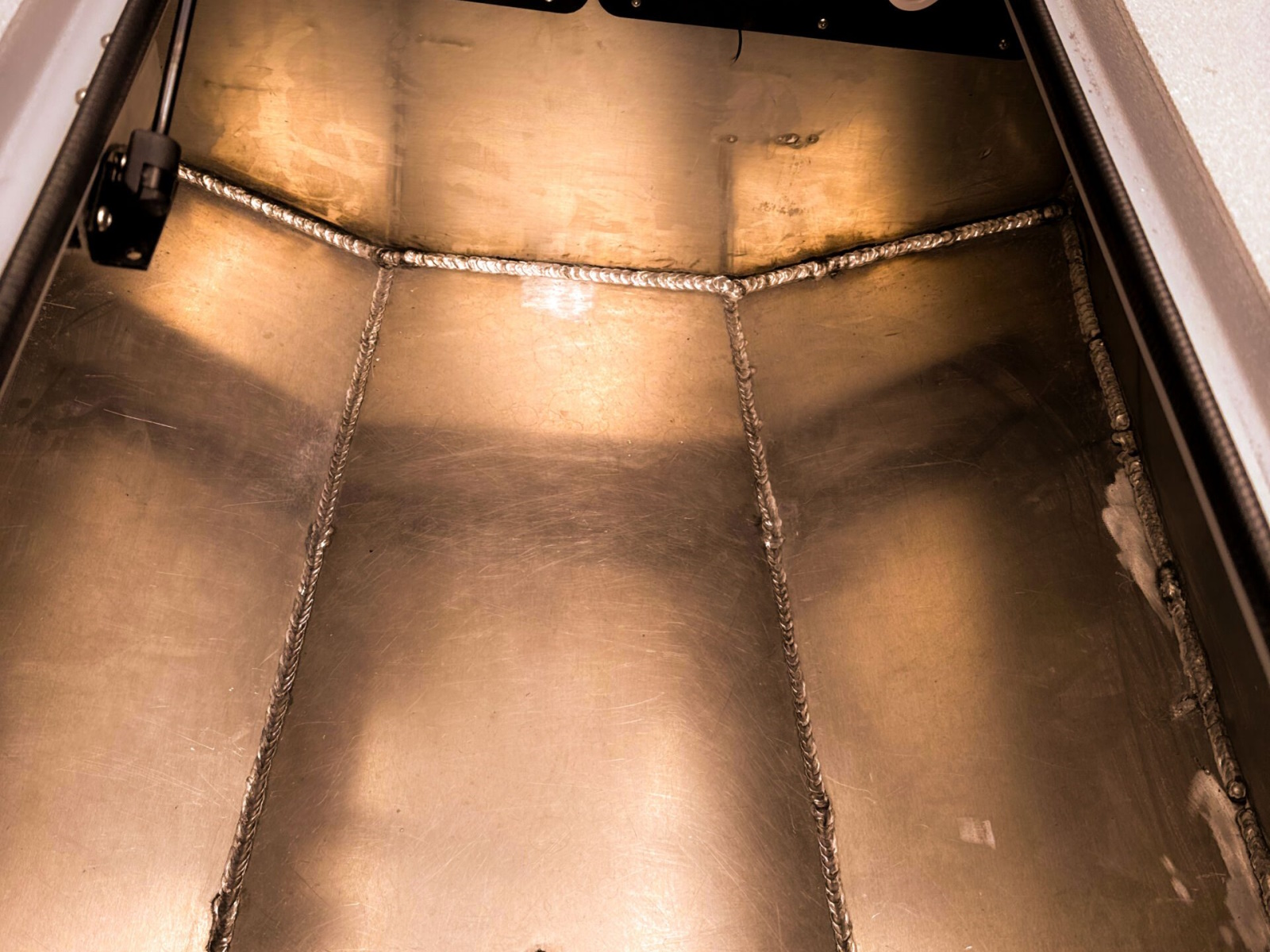

• Constructed with heavy aluminum plate and has a limited lifetime hull warranty
• Interior coated with anti-slip polyurethane liner
• Lightship static draft: 18-20” + motor

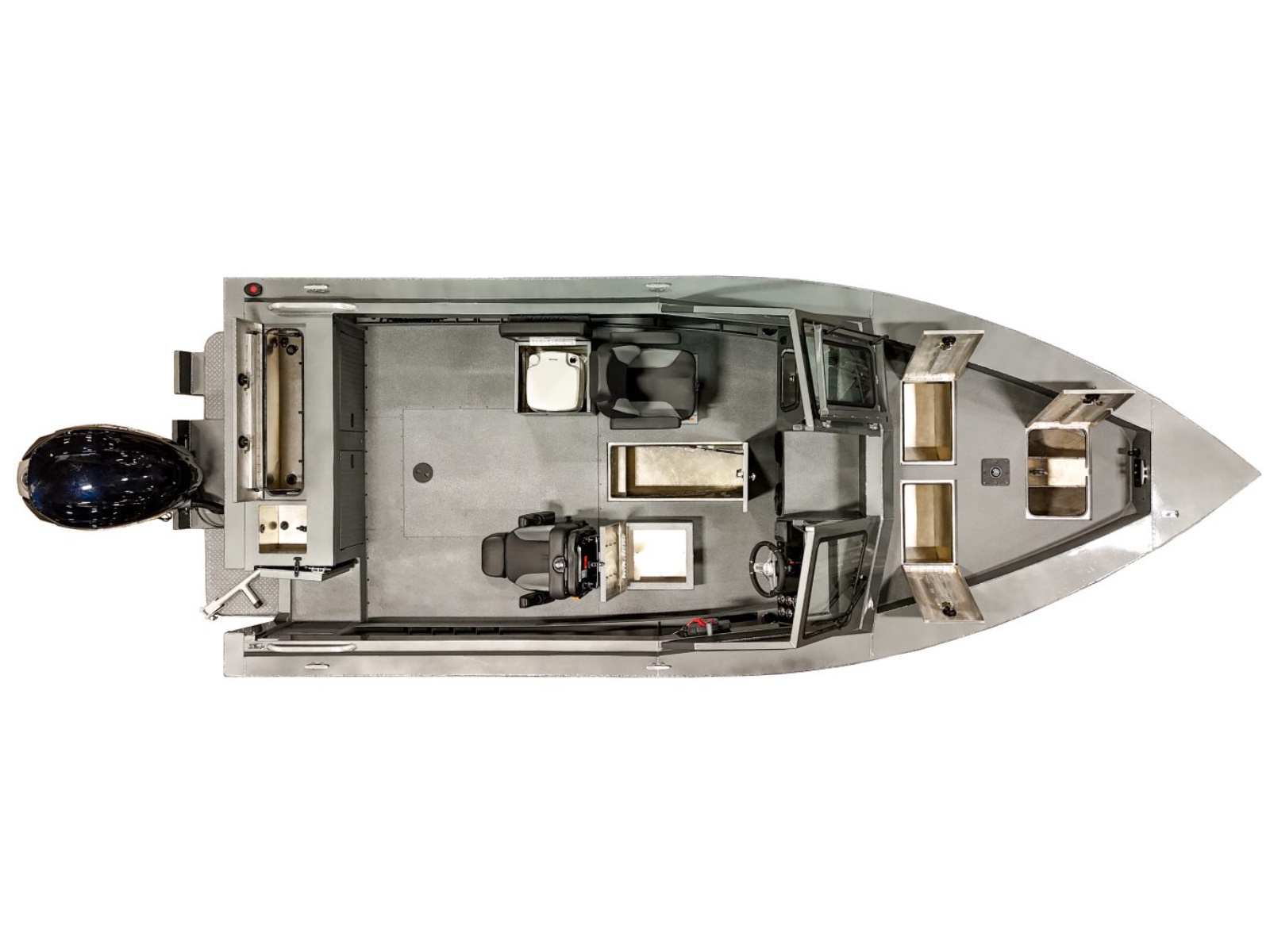

Comfort & Convenience:

• Walk-Through Transom Boarding Door With Grab Rail

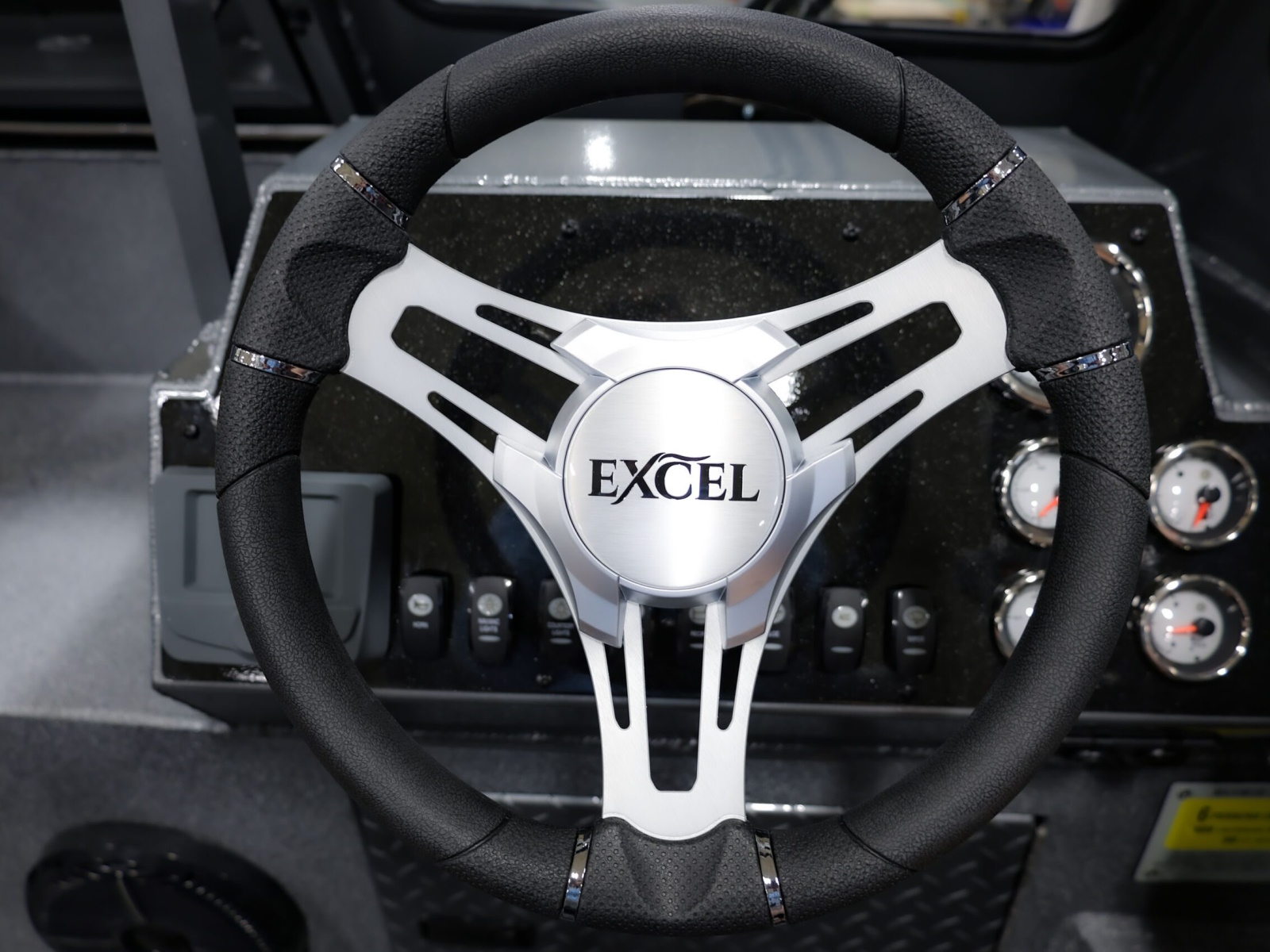

• Seastar Hydraulic Steering
• Anchor Storage with Rope Cleat

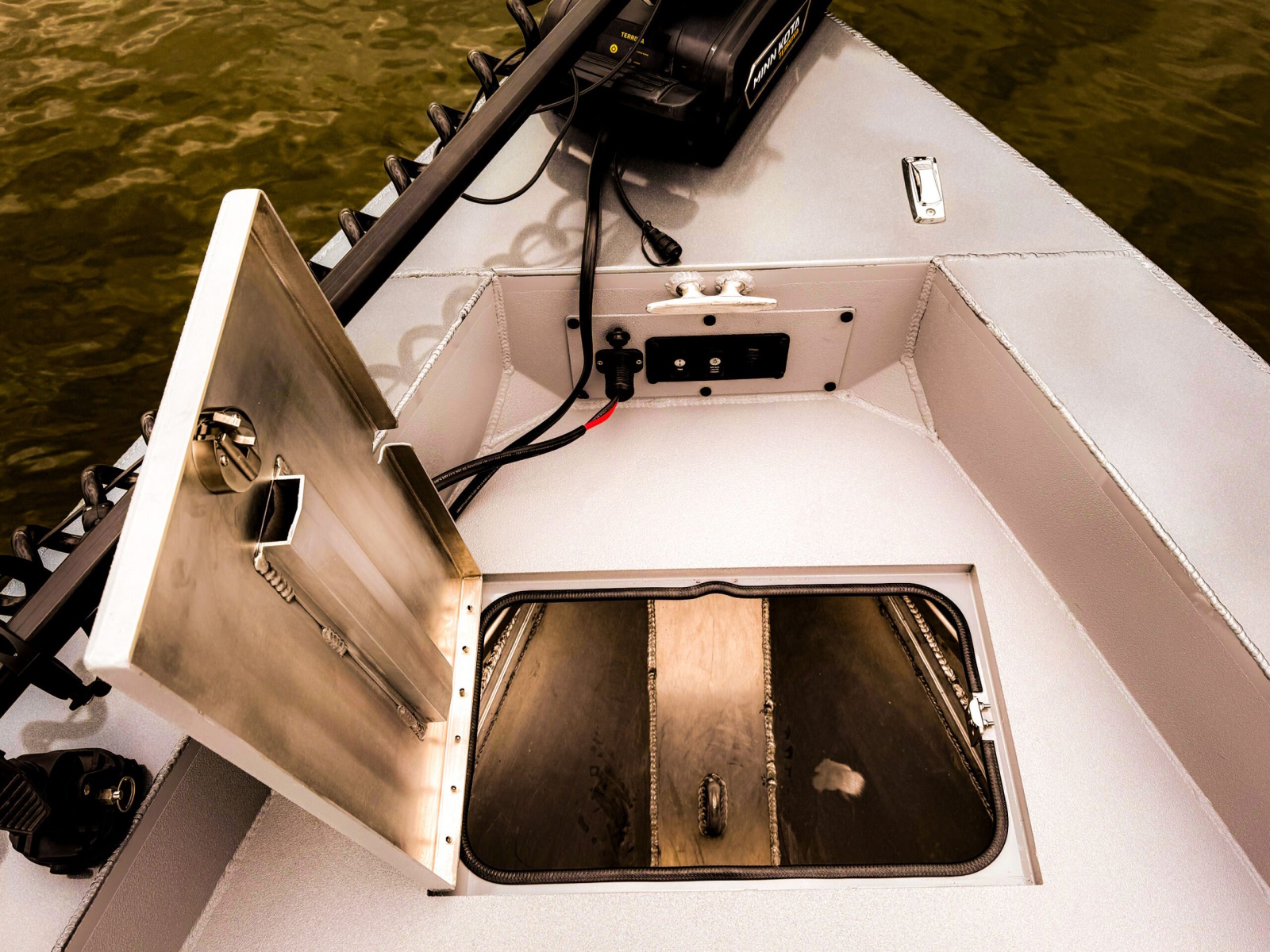

• Front Deck Semi-Dry Storage Box
• Self-Bailing Front Deck

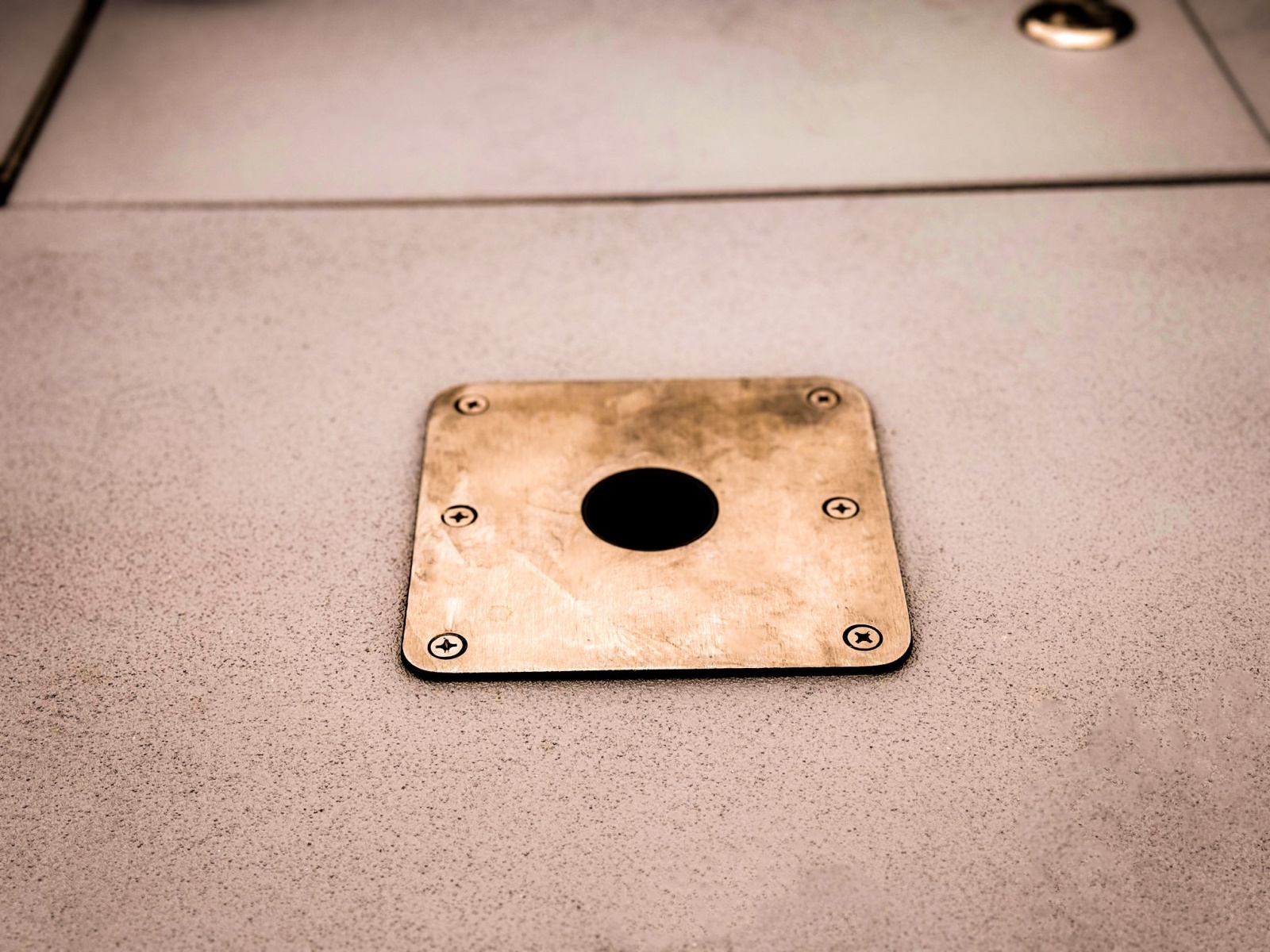

• Front Deck Seat Base
• Super Duty Integrated Bow Eye

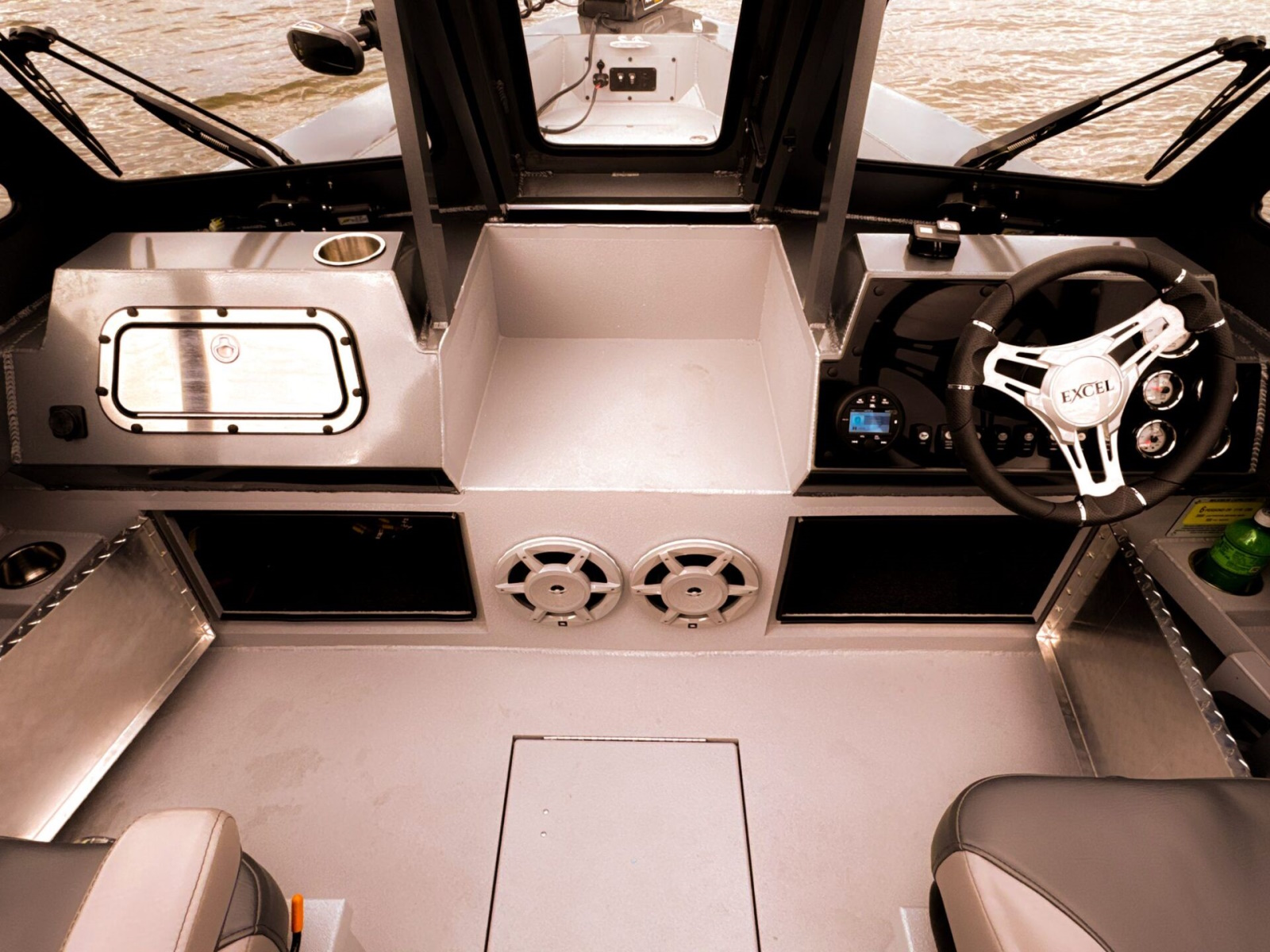

• Large Under-Dash Storage
• Low Dash Design for Clear View Fish Finder Mounting
• Driver Wiper with Dash Controls
• 40 Gal Livewell w/ Dual 1200 GPH Aerators & 1200GPH Recirc
• In-Floor Rod Storage Compartment for 10 Rods – 8′ (Lockable)
• Side Gunwale Trays with Sinker Storage Compartments
• Wash down Pump and Hose
• Three Cup Holders
• Fuel Water Separator

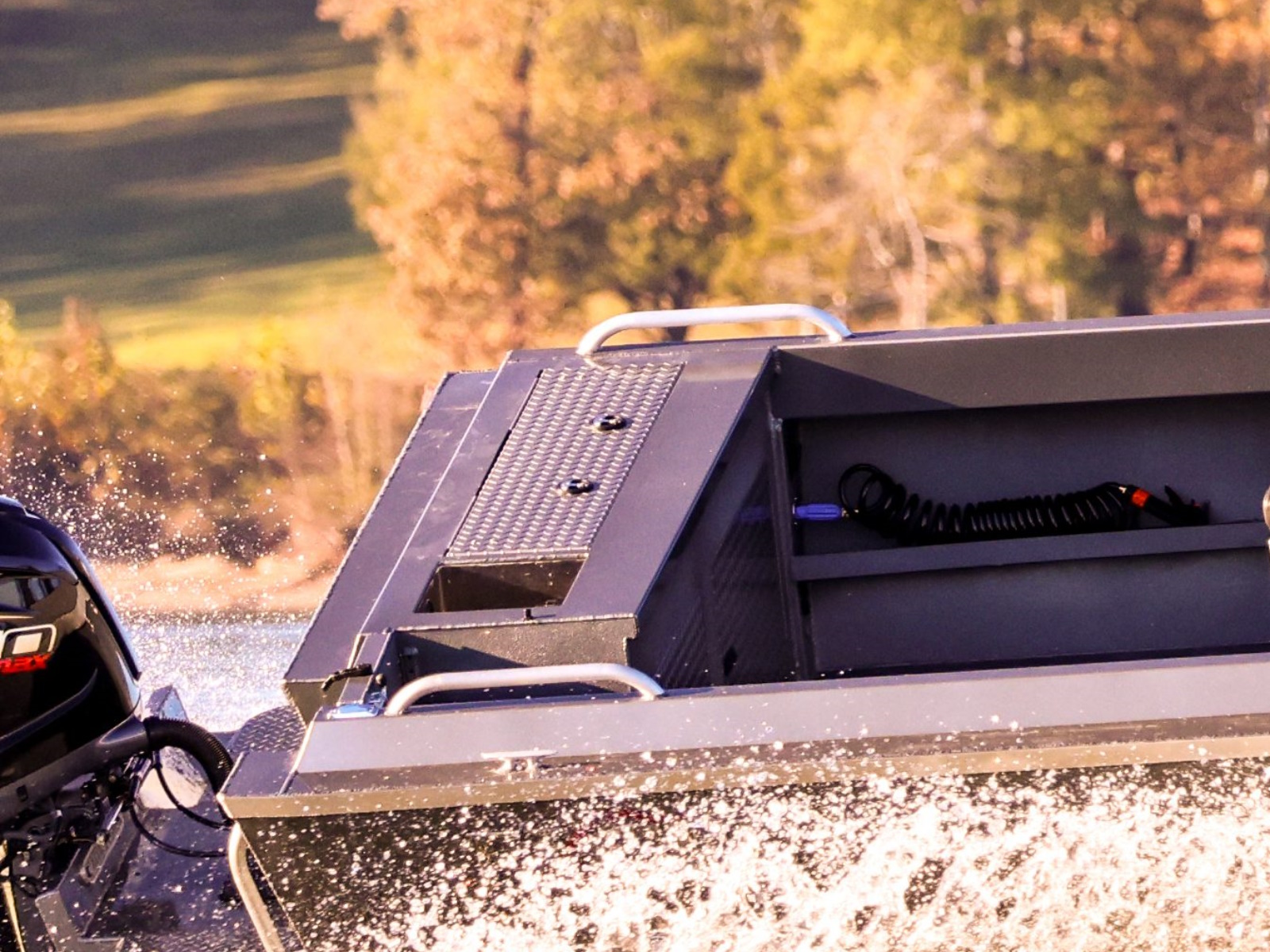

• Swim Deck/Offshore Bracket
• Large Lighted Glove Compartment
• Driver and Passenger Adjustable Seats with Lockable Swivels.
• Welded Hand Wash & Bait Sink With Spray-Head, overflow and Drain.
• Transport Cover
• Brushed Lifting Eyes, Rails, Extrusions and Unpainted Surfaces
• Water Tight Offshore Bracket Plumbing Access Hatch

Electronics:

• 12v USB (Driver Dash) – USB/USBC (Passenger Dash)
• LED, Nav & Running Lights
• Three 1200 GPH Auto Bilge Pumps
• Twin Aft Battery Trays
• Bow Trim & Nav Light Controls

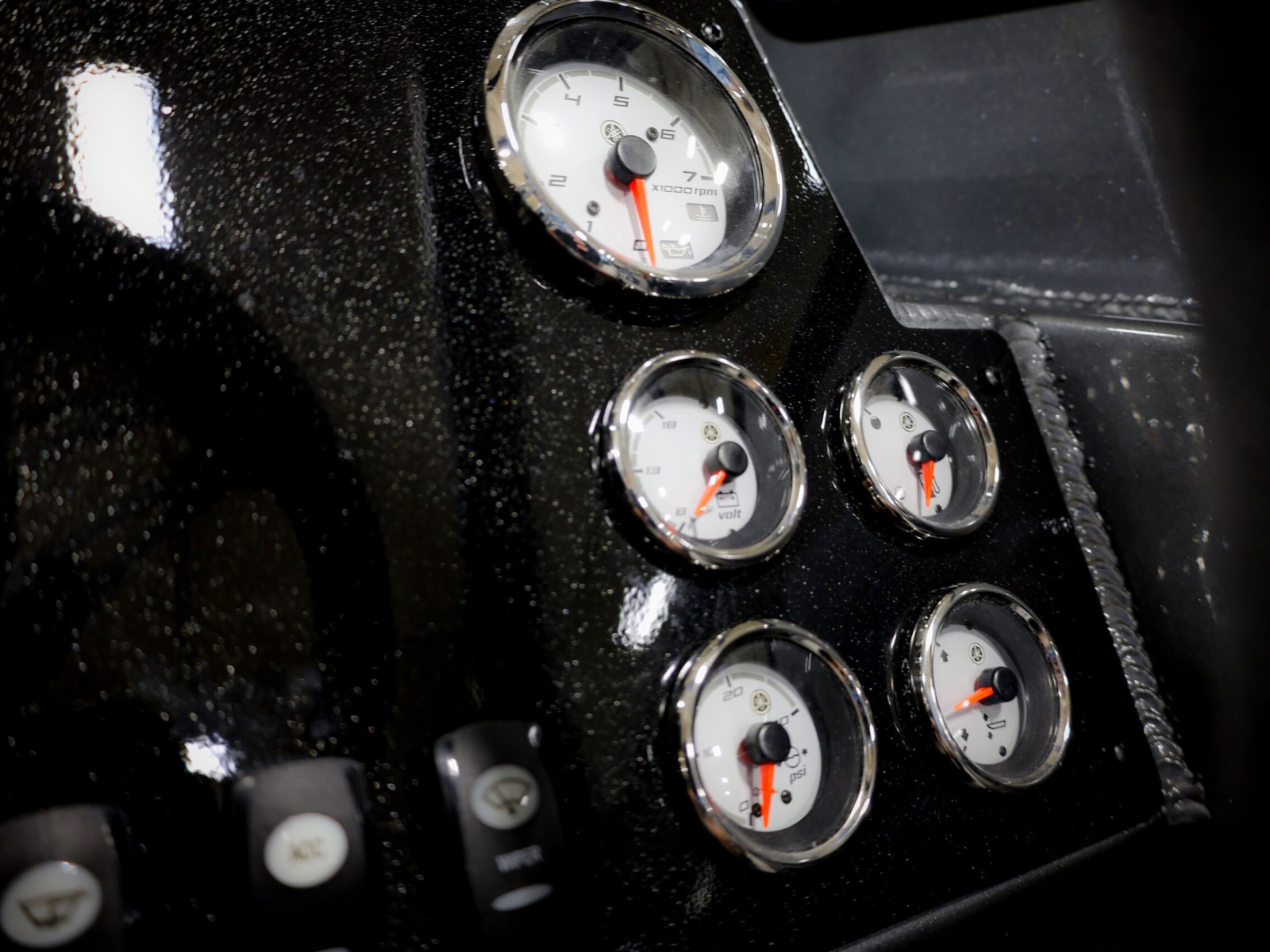

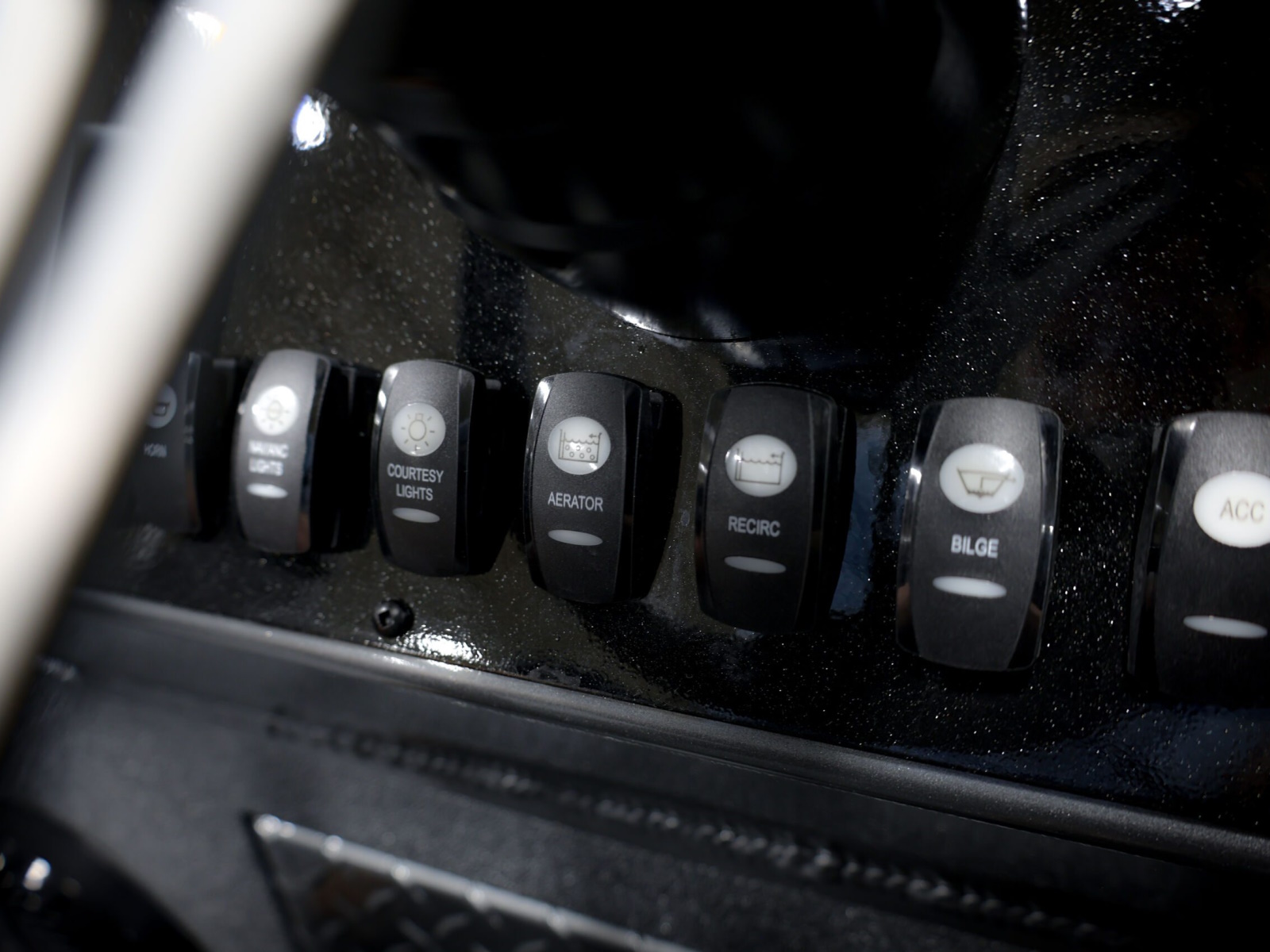

• Fuel, RPM, Voltage, Water Pressure, Trim Gauges & Rocker Switches
• Master Battery Cut-Off Switch (Easy Access Side Mounted – Rear)

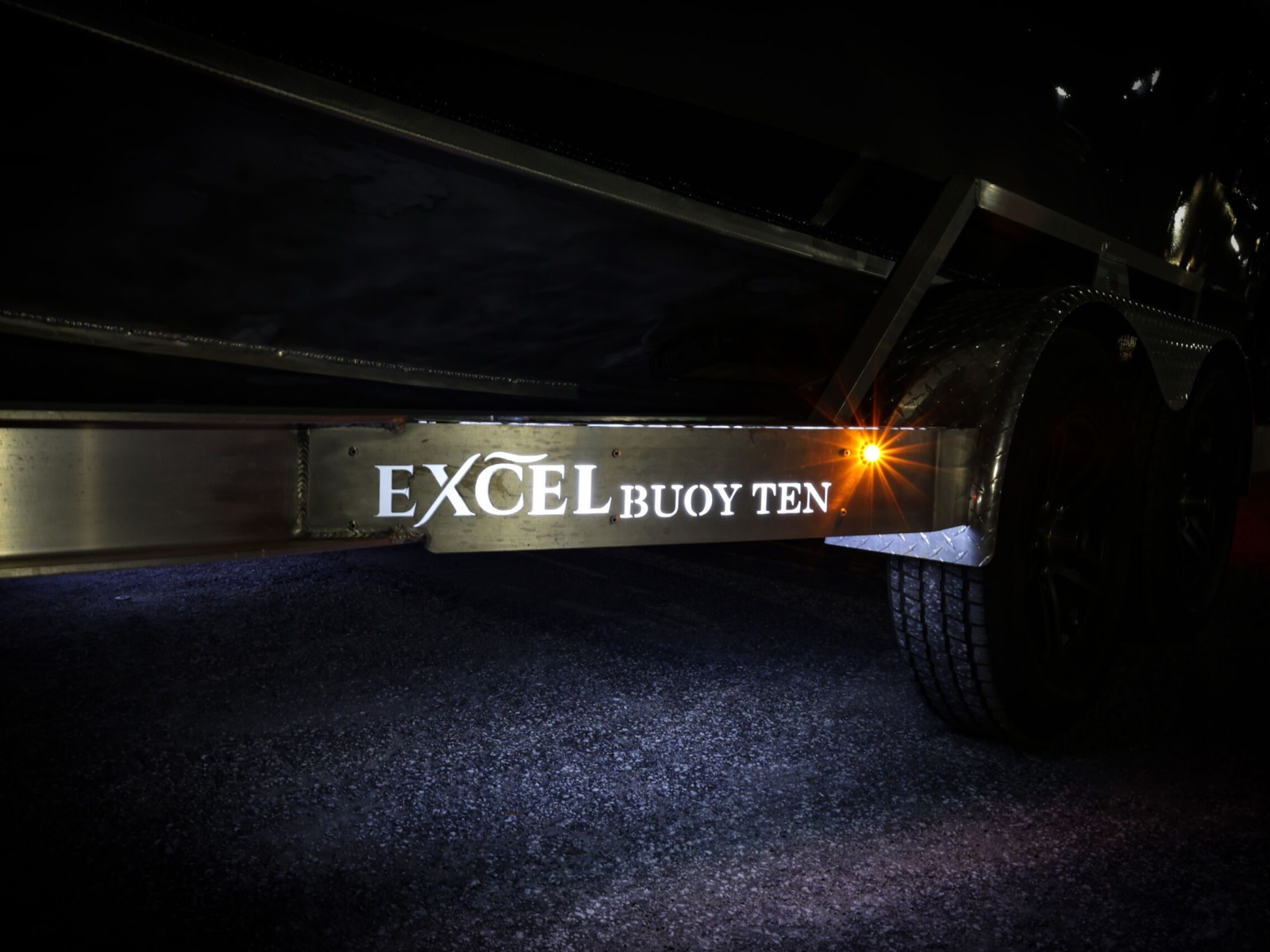

Trailer:

• EZ Loader Tandem I-beam w/ Alloy Wheels
• Backlit Laser Cut Steps
• 4-Wheel Disc Brakes
• Heavy Duty Winch – 2 Speed
• LED Tail Lights w/ Backup & 7-way Plug
• Jack Stand W/ 8″ Wheel
• V-Black Bow Guide

Options:

• Motor Options:

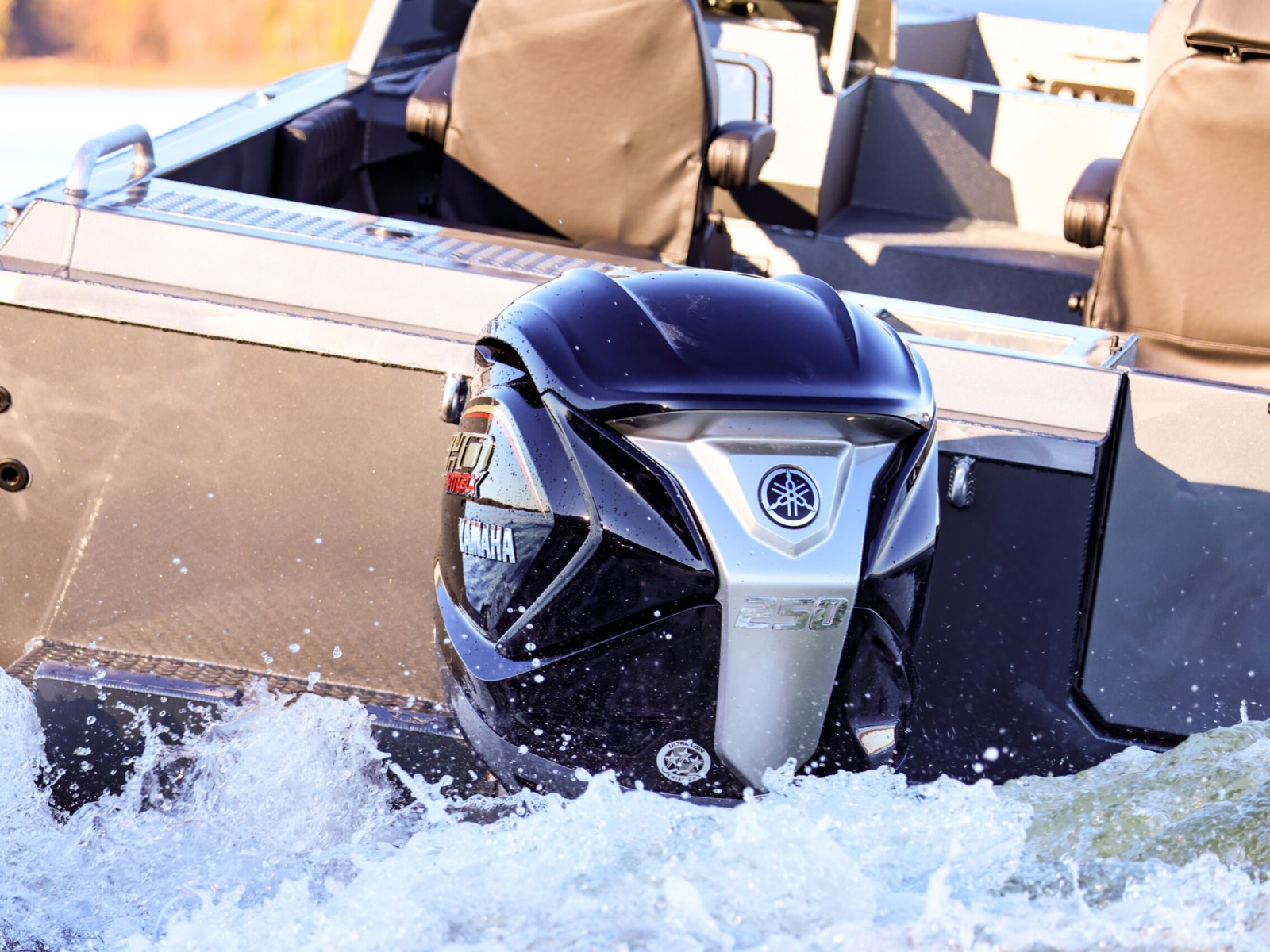

  • Mercury, Yamaha, Suzuki Engines – 150-300 hp
  • Kicker Motor (Mercury, Yamaha, Suzuki)
  • Yamaha Kicker – Optional Sink Hot Water System

• Paint Options

  • Solid Color – Interior (Recomended: Stingray Silver)
  • Two Tone Upgrade
  • Tri Tone Upgrade
  • Metallic Clear Coat
  • Lower Side Stripe
  • Camo Two Tone (Camo Exterior w/ Khaki Interior)
  • Primary and Kicker Motor Camo

• Electrical/Lighting Options

  • LED Underwater Lights (Red, Green, Blue White or purple)
  • LED Interior Light Package – (Red, Green Blue, White or Purple)
  • 12″x12″ LENCO Electric/Hydraulic Trim Tabs w/ Dash Controls

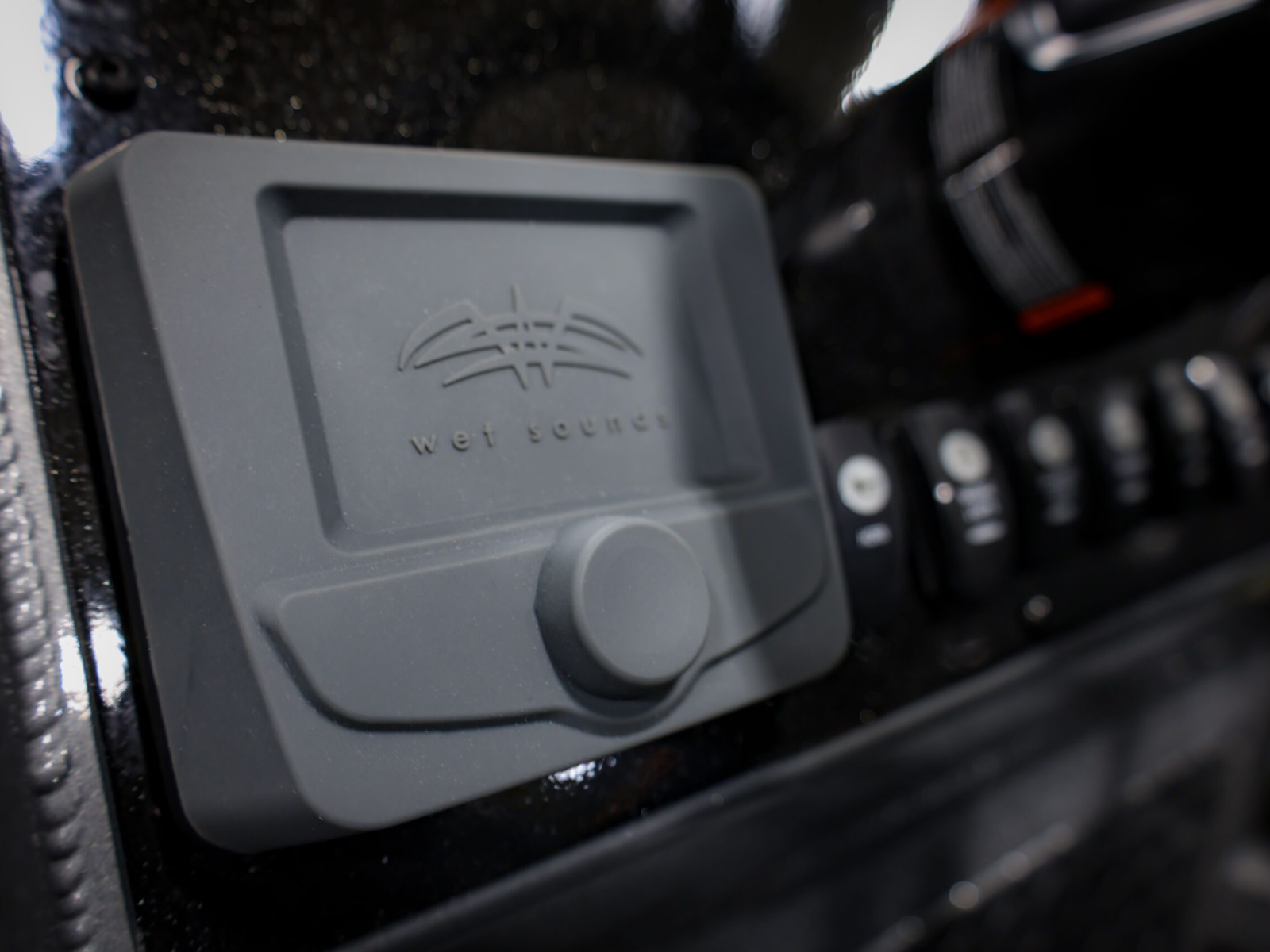

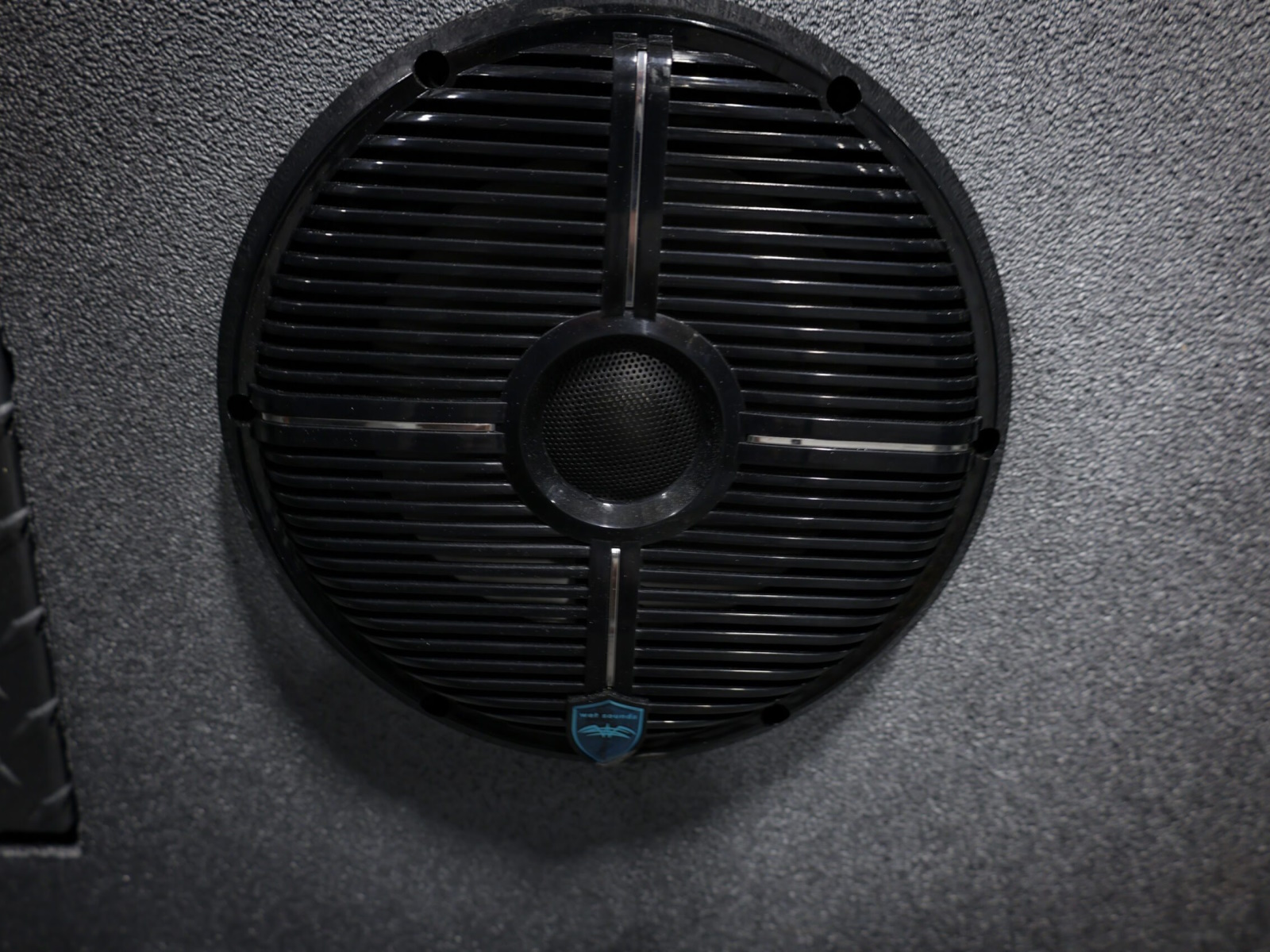

  • Wet Sounds® Stereo with Two 8″ Speakers
  • 2 or 3 Bank Battery Charger (at starter battery or trolling motor)
  • Passenger Windshield Wiper
  • 36V 72″ Trolling Motors
  • Bow or Dash Gimbal Mounted Graphs

• Passenger Seat Options:

  • Driver/Passenger I3MM Suspension Seats
  • Front Deck Seat – Millennium Fold Down (On Pedestal with Swivel)
  • Front Deck Seat – Millennium Casting Seat (on Pedestal with Swivel)
  • Rear Seats – River Master Fixed Arm (On Pedestal with Swivel
  • Rear Seats – Millennium Folding Seats (On Pedestal with Swivel)

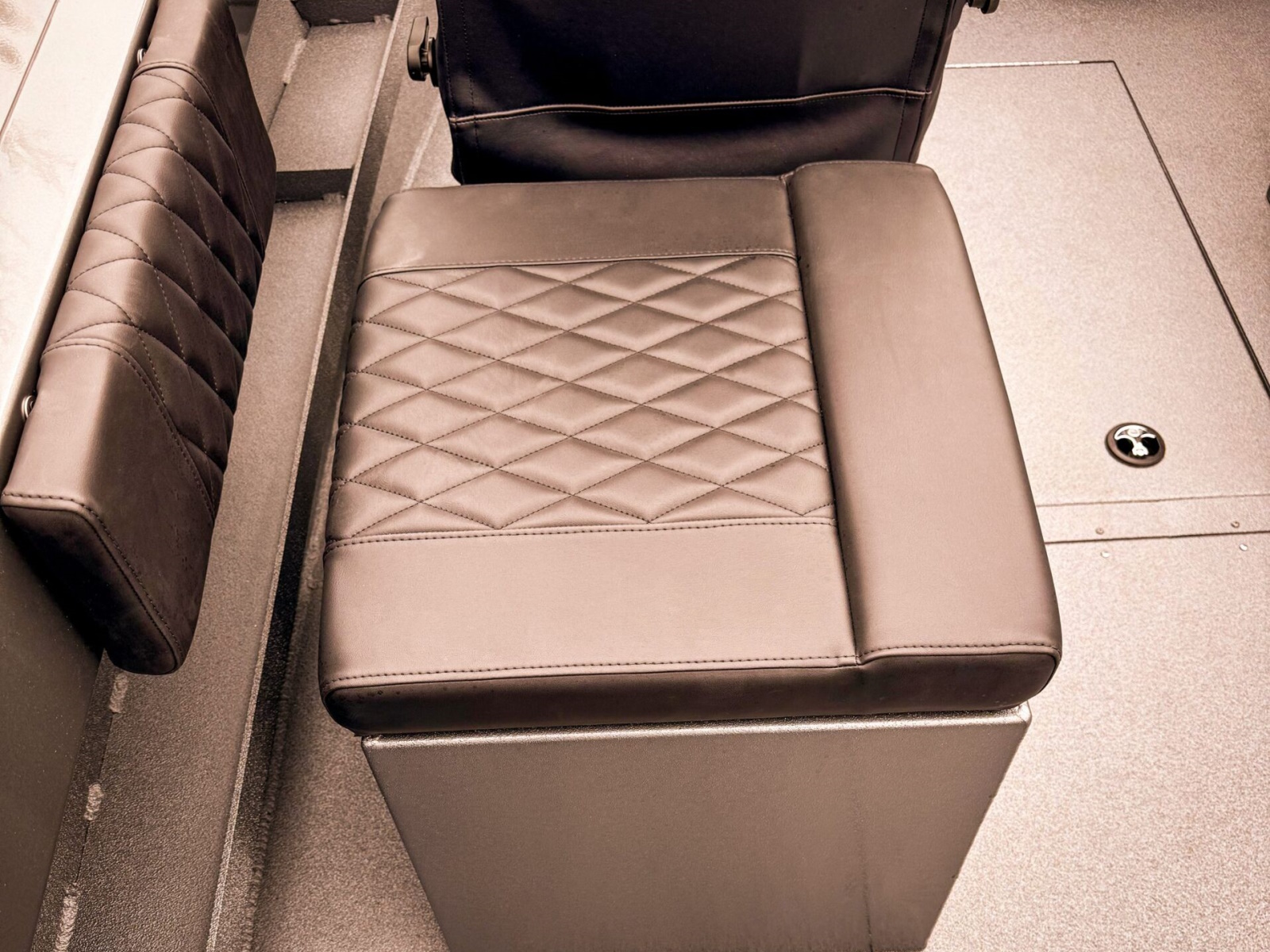

  • 20″ Bench Seat With Cushion & Backrest

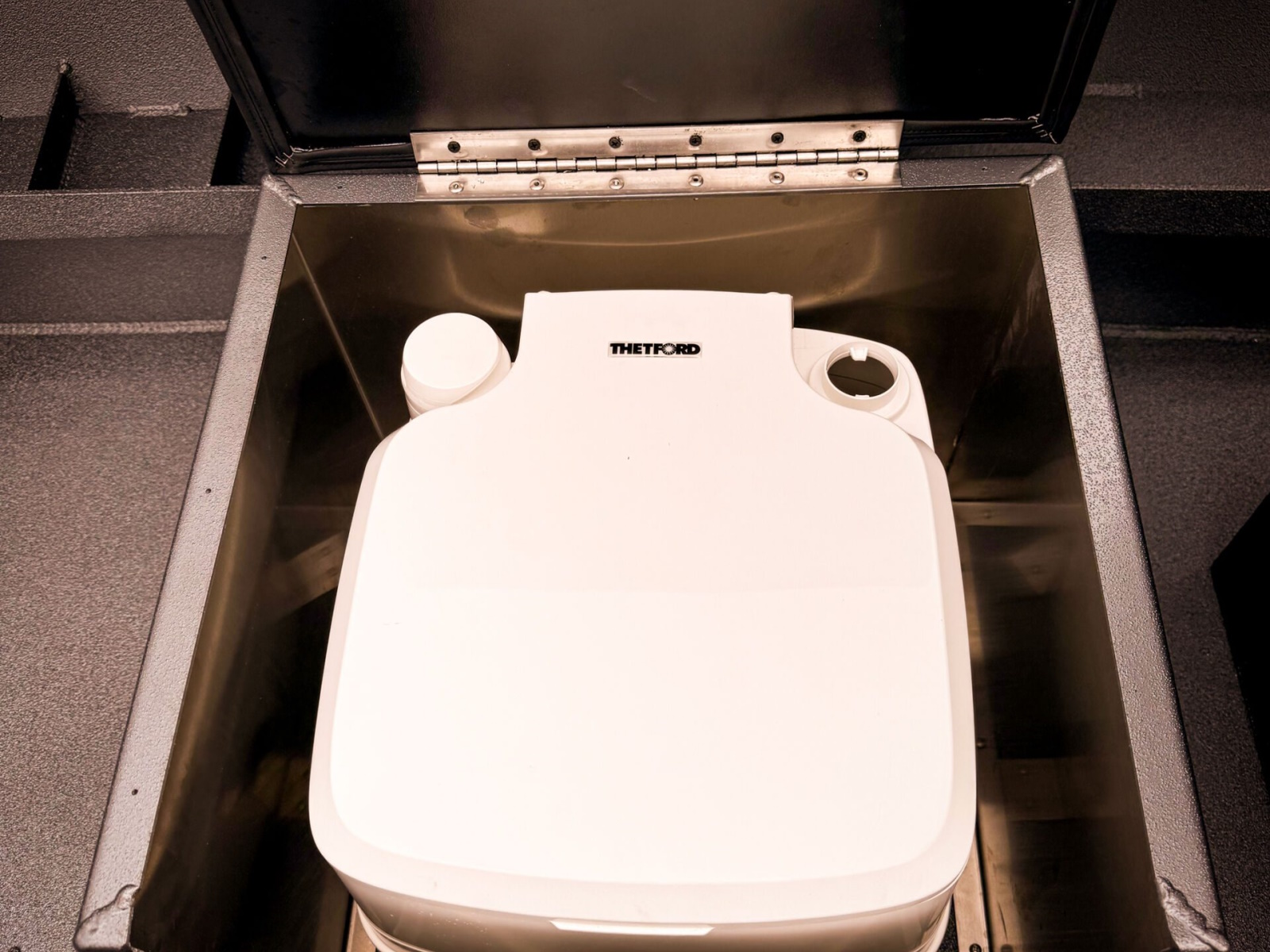

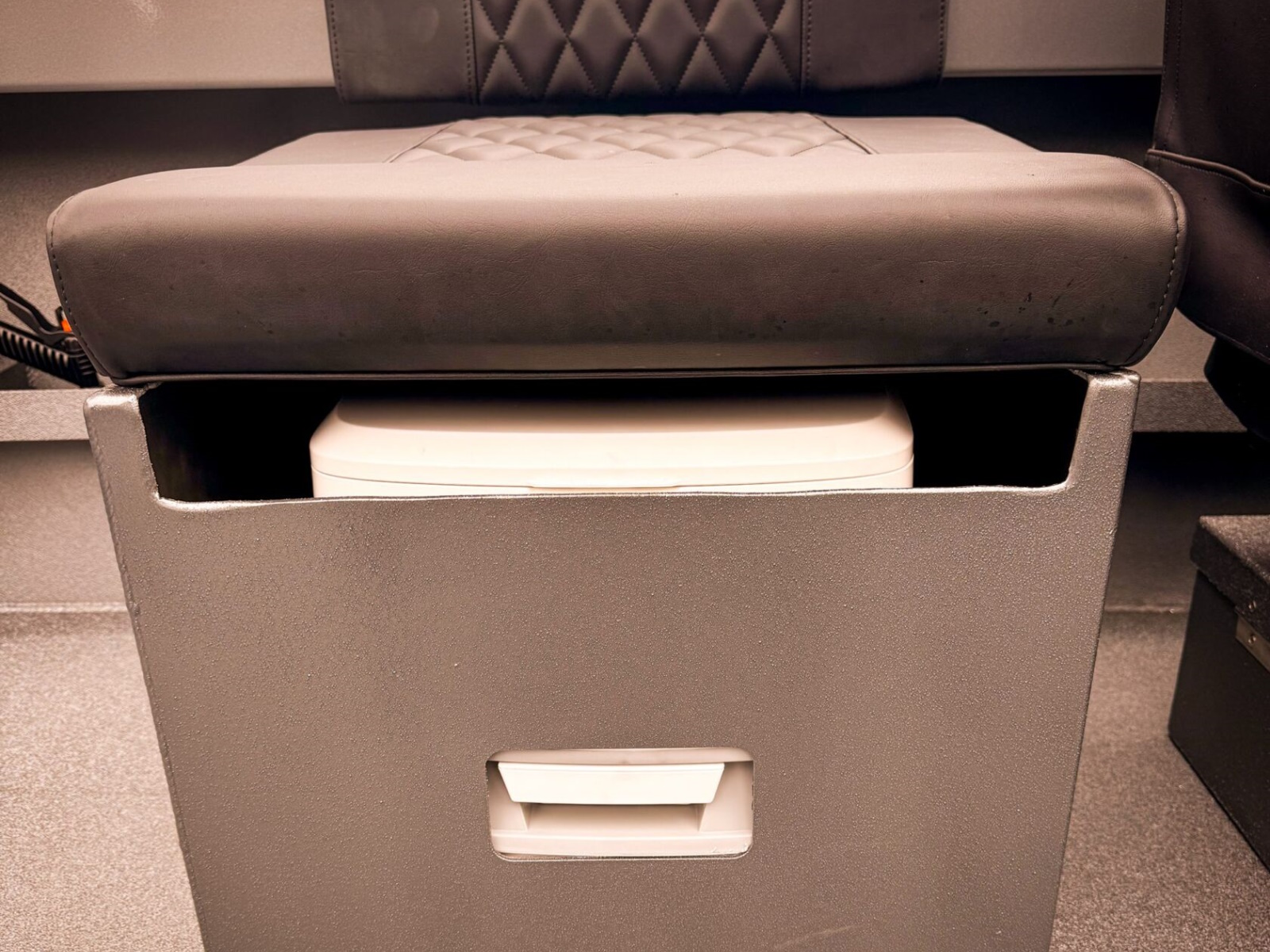

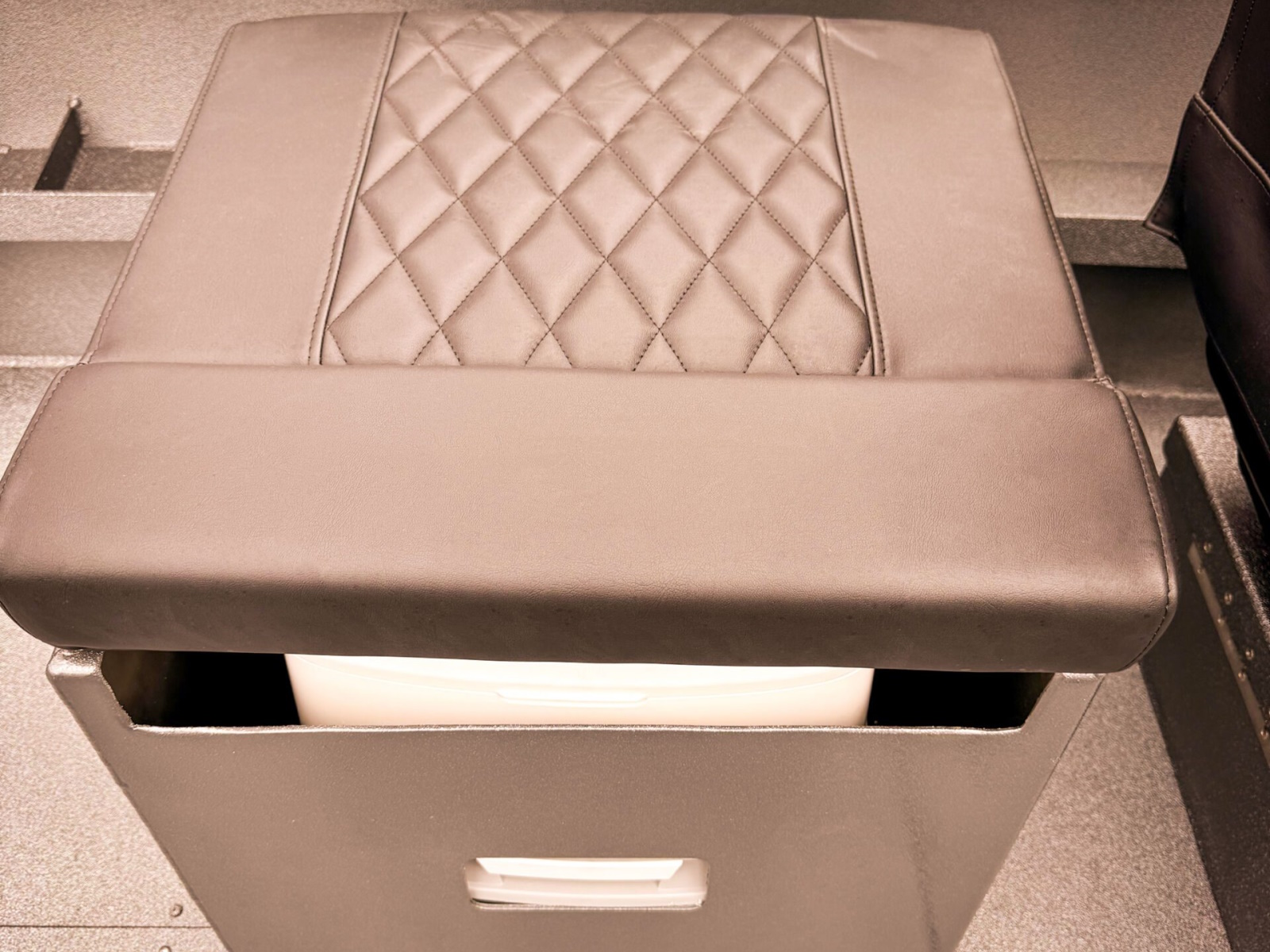

  • Thetford-365® Porta-Potty
  • 20″ Benchseat With Swivel Seat (Porta-Potty option not available)

• Canvas Options:

  • Cockpit Mooring Cover with Storage Bag – Black
  • Standard Cockpit Bimini Top Set (Top, Sides & Drop Curtains, Storage Bag)
  • Extended Cockpit Bimini Top Set (Top, Sides & Drop Curtains, Storage Bag)

• Aluminum & Decking Options:

  • Painted Tread Plate Package (Anchor Guard, Doors, Lids, Swimdeck)
  • Aquatraction Decking
  • Transom/Offshore Bracket Upgrade to 0.250 5086 Aluminum
  • Welded 2 Step Ladder
  • Welded Kicker Bracket
  • Welded Beaching Plates
  • Welded 24″ Stern Rails (2)
  • Welded Downrigger Brackets (2)

• Trailer Options:

  • Alum. I-Beam Trailer – Upgrade
  • 4 Step Boarding Ladder
  • Alloy Spare Tire WithBelly Mount
  • Ratchet Tie Downs (Non Salt Water Use)
